Fortinet, Inc.
FortiExtenderVehicle 212F-AM
Contact manufacturer
SalesFortinet, Inc.
FortiExtenderVehicle 212F-AM
Key features
- LTE wireless WAN extender device for vehicle
- LTE wireless WAN extender device for industrial applications
- IP64 standard
Product description

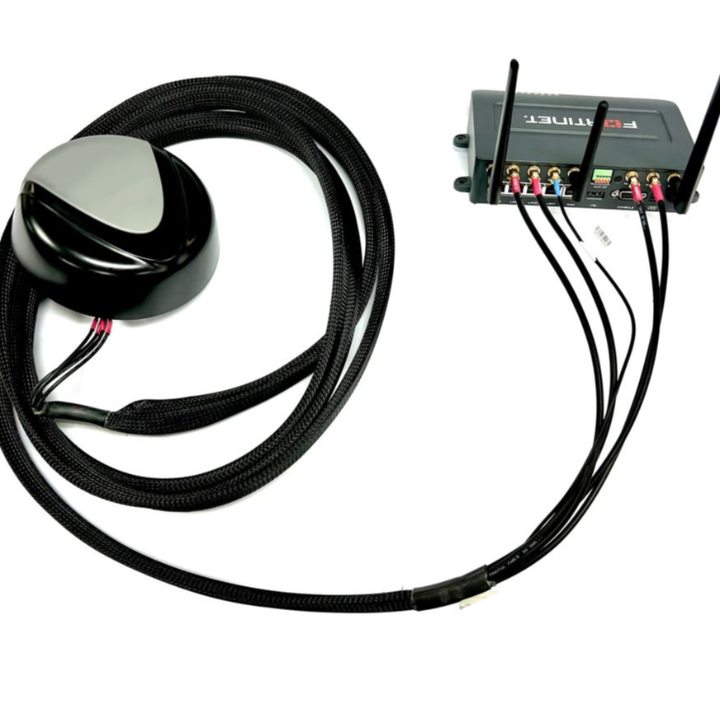

FortiExtenderVehicle is a secure LTE wireless WAN extender device for vehicle
and industrial applications. It has two CAT12 LTE/GNSS module, 2x2 2.4G/5G WiFi5 (11ac wave2),
and BLE integrated in the device. It features one (1) GE WAN, four (4) GE LAN RJ45 ports, one
(1) USB 2.0, one (1) DB9 console, and an industrial digital I/O port of 1x opto input and 1x
relay NC/NO output. It provides 2x2 2.4/5GHz concurrent 802.11 a/b/g/n/ac wave2 WiFi up to
1200 Mbps and Bluetooth 5.0 communication.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 12
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
5
Dual SIM type
SIM1 - Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
7–36Vdc
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- Checked
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- Checked
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- —
- Security Level
- —
- SMS Capability
- —
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
7.16x5.11x1.77 in.
Weight
2.16 lbs
Operating Temperature
-40 °C to 70 °C
Storage Temperature
-40 °C to 70 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
