Fortinet, Inc.

FortiExtenderVehicle 211F-AM

New
Contact manufacturer
Sales
Address

899 Kifer Road, Sunnyvale, CA 94086

Phone

408-235-7700

Fortinet, Inc.

FortiExtenderVehicle 211F-AM

Key features
  • LTE wireless WAN extender device for vehicle
  • LTE wireless WAN extender device for industrial applications
  • IP64 standard
See more
Product description

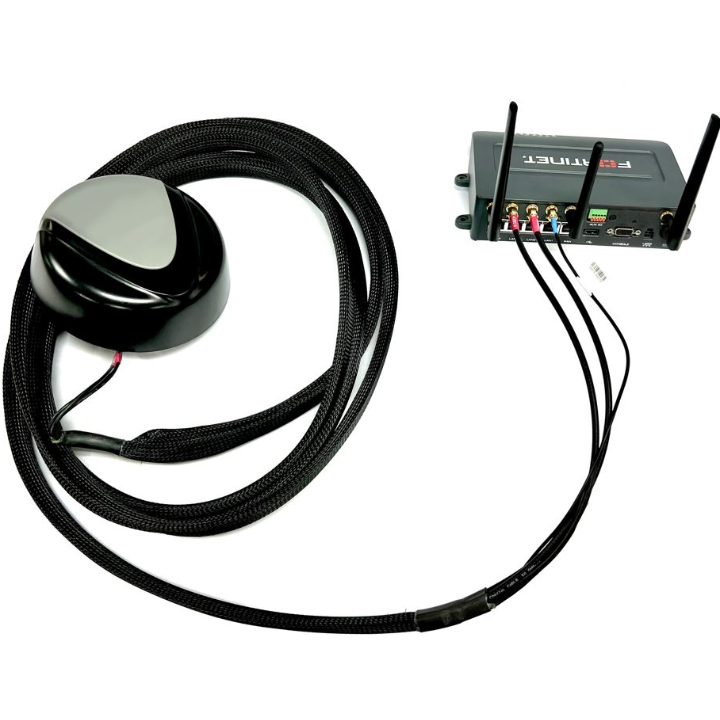

FortiExtenderVehicle is a secure LTE wireless WAN extender device for vehicle and industrial applications. It has one CAT12 LTE/GNSS module, 2x2 2.4G/5G WiFi5 (11ac wave2), and BLE integrated in the device. It features one (1) GE WAN, four (4) GE LAN RJ45 ports, one (1) USB 2.0, one (1) DB9 console, and an industrial digital I/O port of 1x opto input and 1x relay NC/NO output. It provides 2x2 2.4/5GHz concurrent 802.11 a/b/g/n/ac wave2 WiFi up to 1200 Mbps and Bluetooth 5.0 communication.

See more
Overview
Device type
Router
Network technology
LTE with GSM/UMTS
LTE category support
Cat 12
Hardware
Antenna

Battery

Display resolution

Ethernet ports

5

Dual SIM type

SIM1 - Standard/Industrial Micro SIM (3FF)

Compatible 3FF SIM SKUs:

For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-3FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-3FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-3FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK3FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK3FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK3FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I


SIM2 - Standard/Industrial Micro SIM (3FF)

Compatible 3FF SIM SKUs:

For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-3FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-3FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-3FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK3FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK3FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK3FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I


USB ports

1

Voltage supply

7–36Vdc

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Checked
Camera
Dual SIM
Checked
E911
eUICC
Expansion card slots
GNSS
Checked
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ-11
Scanning technology
Serial
Checked
Smart card reader
Voice transmission capable
Wifi
Checked
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution and Non Verizon FoTA solution (combined)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
Diagnostics
Security Level
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
Private Wireless Network (On Site)
Chassis
Dimensions

7.16x5.11x1.77 in.

Weight

2.14 lbs

Operating Temperature

-40 °C to 70 °C

Storage Temperature

-40 °C to 70 °C

Relative Humidity


Rain & dust resistance
Vehicle Mounting
Checked
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
Checked
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)

Band66 (1700 MHz)

LTE Global / Roaming

Band1 (2100MHz)

Band3 (1800MHz)

Band7 (2600 MHz)

Band12 (700 MHz)

Band14 (700 MHz)
