BEC Technologies, Inc.

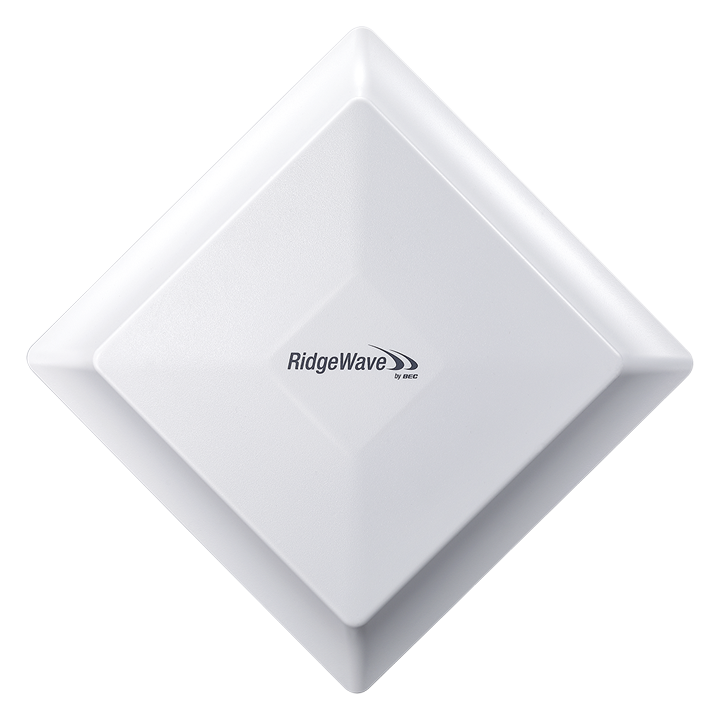

BEC RidgeWave 7000 R26
BEC Technologies, Inc.
BEC RidgeWave 7000 R26
Key features
- Gigabit LTE CAT 18, 5CA DL/2CA UL and data rates of 1.2Gbps DL and 150Mbps UL
- 4×4 MIMO Patented Dual-Pol Dual-Slant antenna technology
- IP-68/UL-50E Enclosure, complete protection against dust and water ingress
- GORE® Vent for pressure equalization, humidity, and airflow
- PoE Powered, IEEE 802.3at (PoE+) complaint (Injector Included)
Product description
The BEC RidgeWave 7000 R26 MaxRange Gigabit LTE Outdoor router adapts LTE Category 18 technology capable of delivering peak data rates of 1.2 Gbps downlink and 150 Mbps uplink. The 7000 R26 is designed explicitly for operators seeking to accelerate and simplify the deployment of new applications and services over public carrier networks or private networks across licensed spectrum assets and CBRS shared spectrum.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 18
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
1
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- Checked
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
Chassis
Dimensions
8.5x3.0x7.5 in.
Weight
4.2 lbs
Operating Temperature
-40° °F to 158° °F
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
Yes, One-to-one, one-to-many
Routing Protocols
RIP, BGP and OSPF
Security Protocol
Staltefu Firewall, DoS Prevention, Web Blocking, 256-bit AES Encryption
VPN Support
VPN Termination (IPSEC, GRE, OpenVPN, L2TP and PPTP)
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
