BEC Technologies, Inc.

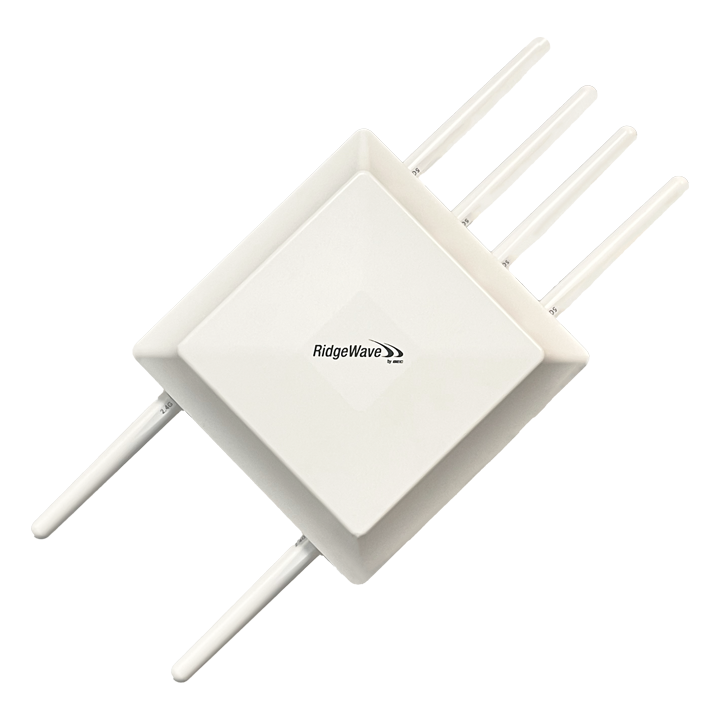

BEC RidgeWave 7000 R26 Gigabit LTE Wi-Fi Hotspot
BEC Technologies, Inc.
BEC RidgeWave 7000 R26 Gigabit LTE Wi-Fi Hotspot
Key features
- Provides internet connectivity in locations or areas without any viable wireline options.
- Gigabit LTE CAT 18 with 5CA DL/2CA UL carrier aggregation for data rates of 1.2 Gbps DL
- High-Power 802.11ac 4×4 Wave 2 MU-MIMO to optimize signal propagation and enhance coverage
- Dual Gigabit Ethernet for automatic failover or prevention of backhaul bottlenecks
- IP68 enclosure protects against dirt, temperature, & water for years of reliable operation
Product description
The BEC RidgeWave 7000 R26-W MaxRange Gigabit LTE Outdoor Hotspot combines LTE CAT 18 and High-Power Wi-Fi 5 802.11ac technologies to provide high-speed internet connectivity in remote areas without reliable wired options. Its IP68 enclosure withstands dirt, water ingress, humidity, and extreme temperatures, allowing for years of dependable operation. The 7000 R26-W is ideal for Outdoor Living Spaces, Public Venues, Parks, Campgrounds, RV Parks, Marinas, Industrial Sites, Smart Cities, and more.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 18
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
1
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- Checked
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
8.5x3.0x7.5 in.
Weight
4.2 lbs
Operating Temperature
-40° °F to 158° °F
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
Yes, One-to-one, one-to-many
Routing Protocols
RIP, BGP and OSPF
Security Protocol
Stateful Firewall, DoS Prevention, Web Blocking, 256-bit AES Encryption
VPN Support
VPN Termination (IPSEC, GRE, OpenVPN, L2TP and PPTP)
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
