Suntech USA
ST4500
Contact manufacturer
SalesSuntech USA
ST4500
Product description

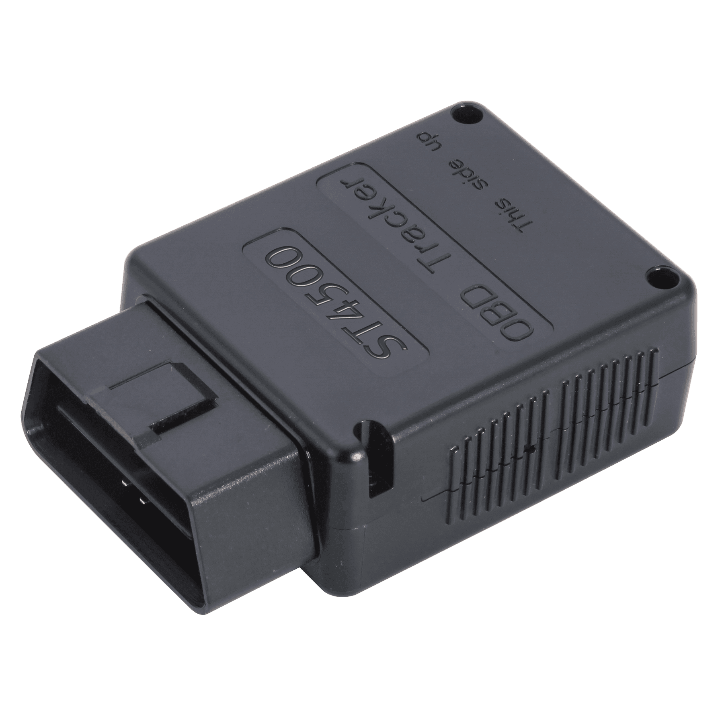

The ST4500 is a full featured LTE CAT-M1 OBD tracking device. It uses an internal antenna and an internal SIM (3FF) card. The ST4500 plugs into a vehicle’s OBDII port. It can read the GPS location information, and access the vehicle’s diagnostic information through the vehicle's on-board computer, such as RPM, coolant temperature, fuel system status, vehicle speed, short term fuel trim and more.
Overview
- Device type
- Vehicle Monitoring
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
3.5 V, 350 mAh
Display resolution
N/A
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
12 V
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
7.4x4.6x2.5 in.
Weight
2.54 oz
Operating Temperature
-20 -
Storage Temperature
0-40 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band13 (700 MHz)
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
