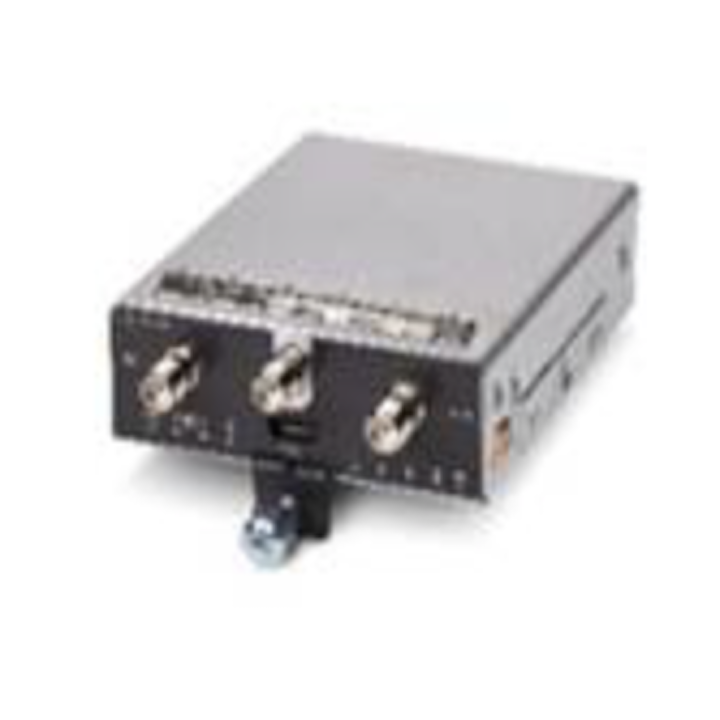

Cisco
P-LTEA-EA
Cisco
P-LTEA-EA
Key features
- Lightweight, compact size with low power consumption Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors
- High availability and business continuity: Redundant WAN connections for failover protection and load balancing: Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP)
- Risk mitigation with multilevel security ● Network perimeter security with integrated application inspection firewall ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption ● High-performance VPNs: DMVPN, FlexVPN, GET VPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources ● Enforced security policy with OpenDNS ● Security hardware acceleration ● Trustworthy systems with field-programmable gate array (FPGA) and hardware anchor
- Unified control of wired and wireless networks from a common console for streamlined operations ● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. Supports Mobility Express for WLAN-enabled routers
- Performance ● Throughput ● Service reliability ● Concurrent software services at speeds up to 250 Mbps for 1100-8P and 100 Mbps for 1100-4P ● A distributed multicore architecture with the industry’s first internal services plane ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances
Product description
Cisco® 1100 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single,
high-performance device. The routers are easy to deploy and manage, with
cutting-edge, scalable, multicore separate data and control plane capabilities.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 6
Hardware
Antenna
External
Battery
—
Display resolution
—
Ethernet ports
—
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
3.874x2.5x0.85 in.
Weight
—
Operating Temperature
—
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
NAT/PAT, 4-to-4
Routing Protocols
EIGRP, OSPF, BGP, RIPv1 and RIPv2, NHRP, WCCP, DHCP, L2TP, L2TPv3
Security Protocol
IPSec, AES, 3DES
VPN Support
FlexVPN, IPSEC, DMVPN, GETVPN, GRE
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
