VMware
VMware SD-WAN Edge 510-LTE by VeloCloud
VMware

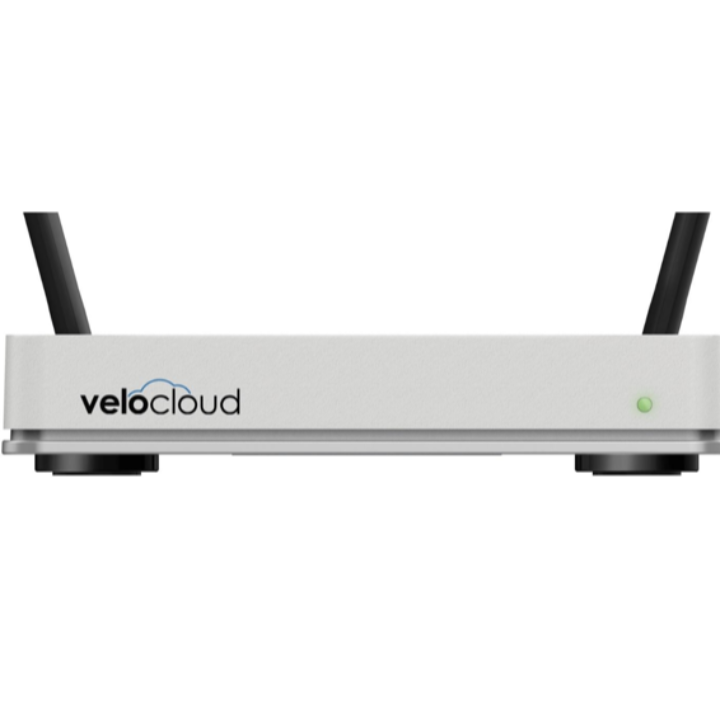

VMware SD-WAN Edge 510-LTE by VeloCloud
Product description
The VMware SD-WAN Edge 510-LTE by VeloCloud is a edge branch device capable of terminating different types of transports (LTE, Broadband, MPLS) at the customer prem edge site and create an SD-WAN overlay tunnel that apply QoS to user traffic flowing between branch location and cloud services
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 6
Hardware
Antenna
External
Battery
Power supply
Display resolution
Not Applicable - IOT router device
Ethernet ports
4
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
2
Voltage supply
12VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
12x10x5.5 in.
Weight
5 lbs
Operating Temperature
0 °C to 40 °C
Storage Temperature
-40 °C to 70 °C
Relative Humidity
5 to 85%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
1:1 NAT and NAT overload
Routing Protocols
VCRP, BGP, OSPF
Security Protocol
IPSEC, TLS
VPN Support
GRE, IPSEC, VCMP
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Contact
Website
Industries
Industrial / Manufacturing
Retail
Transportation
