Koos Technical Services, Inc. dba KTS Wireless

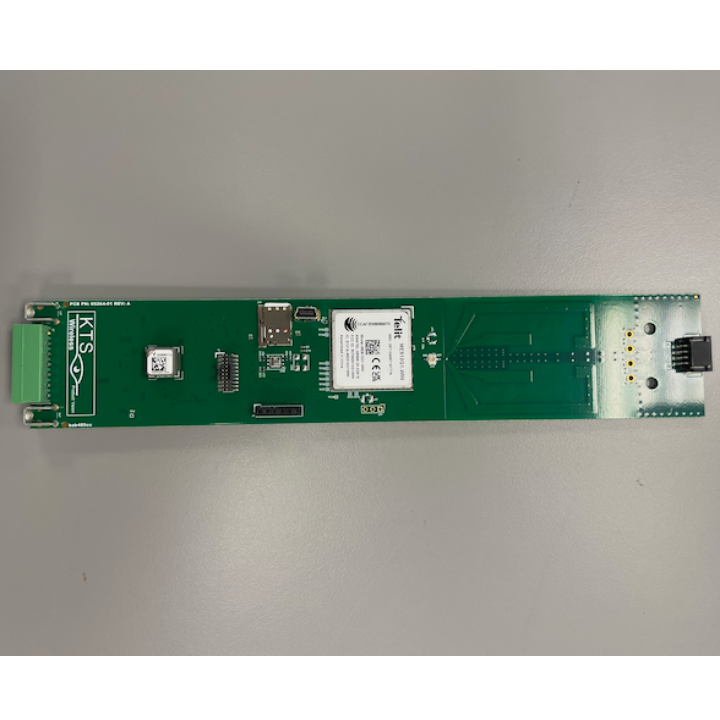

ASR v4 Cat M1 WW
Key features
- Remote sensor monitoring and control
- SDI-12, RS-232/RS-485, Battery Powered Remote Sensor Monitoring and Data Logging Radio
- Data Collection for Agriculture Irrigation Management
Product description
IoT Sensor monitoring solution targeted primarily at Agricultural Irrigation Applications including soil moisture sensors, water level sensors, electric and diesel pump automation.
Overview
- Device type
- Remote Monitoring and Control
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
—
SIM type
Industrial Soldered SIM (MFF2 Embedded)
Learn More... M2M/IoT SIM SKU and Procurement Information
Compatible MFF2 SIM SKUs:
For CAT-M1 Devices:
- M2MTC-MFF2-A
- M2MTC-MFF2-D
- M2MSIM-HD-D
- M2MTC-MFF2-S
- M2MTC-MFF2-I
For Non CAT-M1(Cat 1, Cat 2, Cat 3, Cat 4,and above) Devices:
- MFF2-GT-A
- MFF2-AUTO-GT-A
- MFF2-GD-D
- MFF2-AUTO-GD-D
- M2MSIM-HDI-D
- MFF2-ST-S
- MFF2-AUTO-ST-S
- MFF2-ID-I
USB ports
—
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
RTOS
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
12x2.25x2.25 in.
Weight
2 lbs
Operating Temperature
0 °C to 50 °C
Storage Temperature
-25 °C to 85 °C
Relative Humidity
—
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band12 (700 MHz)
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Technical support
Address
Phone
Industries
Agricultural
Industrial / Manufacturing
Oil and Gas
Utilities
