Tattletale alarm
Tattletale Commercial Unit V3
Contact manufacturer
SalesTattletale alarm
Tattletale Commercial Unit V3
Key features
- Supports up to 500 standard and specialized indoor and outdoor spread spectrum wireless sensors.
- 240-64 graphic LCD and Membrane keypad for enhanced User Interface
- Built-in 115dB siren and strobe light
- Ability to verbally announce alarms using a PA or Walkie-Talkie
- Available version to directly support utilities using SCADA when attached to an SEL RTAC
Product description

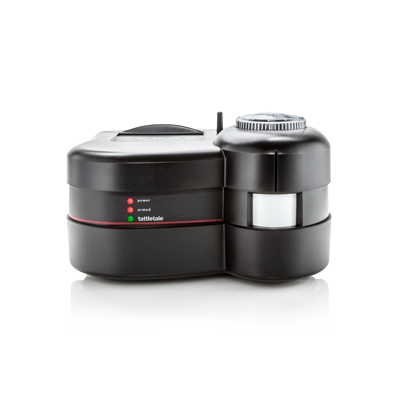

Self-contained portable alarm system. It has a built in PIR motion sensor, a cellular radio, Ethernet, 240 x 64 graphic display, membrane keypad, 115 dB siren/strobe, accelerometer and a 15 hour backup battery. The unit is designed with complete tamper proof capability, which will trigger an instant alarm if disturbed during entry delay. A large array of tamper proof wireless and portable motion and environmental sensors can be placed up to 1/2 mile from the base unit.
Overview
- Device type
- Alarm Panel
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
Internal 6 volt 6.6 AH SLA
Display resolution
240 x 64 Monochrome
Ethernet ports
1
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
9-16 VDC
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- Checked
- Battery safety
- Checked
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- Checked
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
11" x 12" x 6"
Weight
8 lbs
Operating Temperature
40 - 90 degrees F
Storage Temperature
-10 - 140 degrees F
Relative Humidity
95% non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band13 (700 MHz)
