Guardian Telecom Ltd

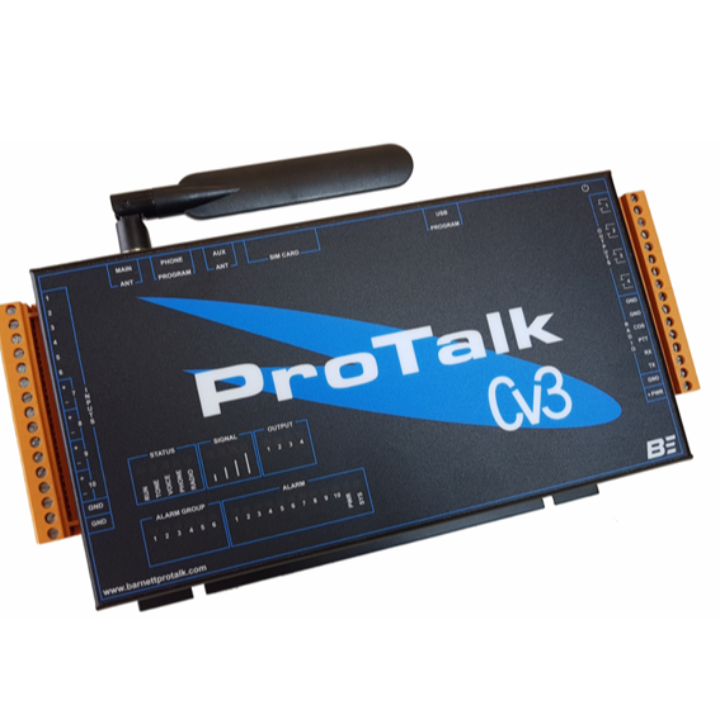

ProTalk Cv3
Contact manufacturer
SalesAddress
#200, 550-71st Ave. S.E., Calgary, AB, T2H 0S6
Phone
403.255.9544
Guardian Telecom Ltd
ProTalk Cv3
Key features
- voice and sms text messaging
- lower power mode for solar applications
- class I div 2 for hazardous locations
- internal battery backup
- event logging
Product description
Alarm reporting unit (ARU) used in the industrial applications to monitor various equipment for certain alarm conditions, ie. power fail, temperature, equipment failure. When an alarm occurs, the dialer contacts an operator either by phone call or by text message to report the alarm condition.
Overview
- Device type
- Remote Monitoring and Control
- Network technology
- LTE Only
- LTE category support
- Cat 1
Hardware
Antenna
—
Battery
optional 12VDC backup supply
Display resolution
na
Ethernet ports
0
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
12-24VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- Checked
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
10.0x5.6x3.0 in.
Weight
2.7 lbs
Operating Temperature
-40 °C to +85 °C
Storage Temperature
-40 °C to +85 °C
Relative Humidity
95
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Construction
Industrial / Manufacturing
Oil and Gas
Utilities
