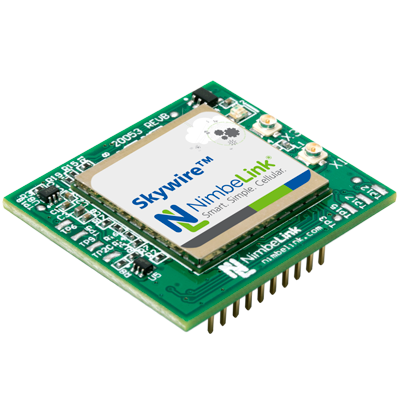

NimbeLink

NL-SW-LTE-SVZM20

Contact manufacturer
Sales
Address

3131 Fernbrook Ln N , Plymouth, MN, 55441

Phone

612-285-3433

NimbeLink

NL-SW-LTE-SVZM20

Key features
  • Small Footprint (29mm x 33mm x 10.4mm)
  • Low Power
  • GPS Onboard
  • Fully End-Device Certified for Verizon Wireless
  • Wide Voltage Range (3.3v - 5v)
See more
Product description

With the price and speed users need for IoT applications, NimbeLink’s Skywire™ CAT M embedded modems take full advantage of the modern 4G LTE network. They will replace soon-to-be-discontinued 2G service and, in some applications, Cat 1 modems, also designed for IoT. Based on the Sequans chipset, the Skywire Cat M modem will be the industry’s first Cat M embedded modems with FCC and carrier-required end-device-certification, eliminating months of testing and tens of thousands of dollars in cost for product developers. Skywire Cat M LTE modems are the smallest in the industry and are compatible with a variety of Skywire development kits and microprocessor shields.

See more
Overview
Device type
Modem
Network technology
LTE Only
LTE category support
Cat M1
Hardware
Antenna

External

Battery

Display resolution

Ethernet ports

0

SIM type

Standard/Industrial Micro SIM (3FF)

USB ports

0

Voltage supply

3.3-5v

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
Checked
GPS

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Checked
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FOTA

Verizon FoTA Solution (only)

Operating System

Other


Developer Kit
EMS
MMS
Remote Management
SMS Capability
Checked
Chassis
Dimensions

29mm x 33mm x 10.4mm

Weight

9oz

Operating Temperature

-40C to +85C

Storage Temperature

-40C to +85C

Relative Humidity


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support


Fax capable
Firewall
UMTS
LTE

Band13 (700 MHz)

Contact
Technical support
Address
3131 Fernbrook Ln N , Plymouth, MN, 55441
Phone

612-285-3433

Email

product.support@nimbelink.com
