Sierra Wireless

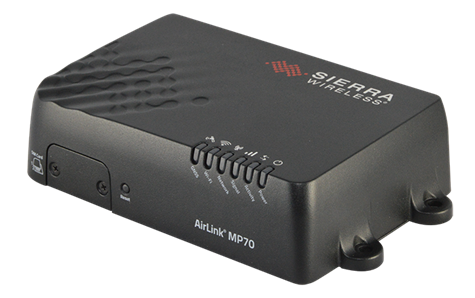

Airlink MP70
Contact manufacturer
SalesAddress
13811 Wireless Way Richmond, British Columbia Canada, V6V 3A4
Phone
877-687-7795
Sierra Wireless
Airlink MP70
Key features
- Support for LTE-Advanced
- 802.11ac Wi-Fi support 3x3
- 4 port GigE switch
- Class 1 Div 2
- GPS, GNSS
Product description
The AirLink® MP70 is designed to provide no-compromise LTE-A mobile broadband to enable a super-connected vehicle.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 6
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
4
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
7-36VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
—
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
19.0x10.9x4.5 in.
Weight
1.68 lbs
Operating Temperature
-30/+70 °C
Storage Temperature
-40/+85 °C
Relative Humidity
95% RH @ 60°C
- Rain & dust resistance
- Checked
- Vehicle Mounting
- Checked
Network
NAT
Yes
Routing Protocols
DMNR, RSR
Security Protocol
VPN
VPN Support
IPSEC, GRE, SSL
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Transportation
