Digi International Inc.

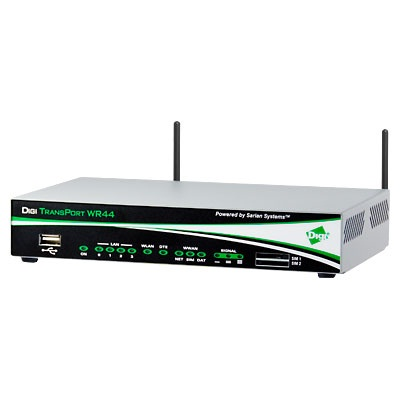

Transport WR44 - LE910SVG
Contact manufacturer
SalesDigi International Inc.
Transport WR44 - LE910SVG
Key features
- Enterprise Cellular Router
- WiFi Access Point optional
- 4-port Ethernet Switch
- Rugged Industrial grade option
Product description
The Digi TransPort WR family of upgradeable cellular routers offers an all-in-one mobile communications solution with secure high-speed wireless connectivity to remote sites and devices for primary or backup wireless broadband network connectivity. These multi-function cellular routers feature a rugged flexible design with optional integrated Wi-Fi access point (with multi SSID) / Client, USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including multiple serial ports (async or sync), GPS or I/O telemetry modules.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 3
Hardware
Antenna
External
Battery
—
Display resolution
N/A
Ethernet ports
4
SIM type
—
USB ports
1
Voltage supply
9-36V DC, 15W Max, 8.5W Typical
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- Checked
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
—
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
5.7" x 8.3" x 1.6"
Weight
2lbs
Operating Temperature
-35° C to +75°C
Storage Temperature
-40° C to +85° C
Relative Humidity
0% to 95% (non-condensing) @ 25° C
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
Stateful inspection firewall supported.
Routing Protocols
—
Security Protocol
IP filtering, Stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197, Open VPN client and server; PPTP, L2TP; VPN Tunnels: 5 included. Cryptology: SHA-1, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, SCEP for X.509 certificates; Content Filtering (via 3rd party); MAC Address Filtering; VLAN support
VPN Support
IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197, Open VPN client and server; PPTP, L2TP; VPN Tunnels: 5 included
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Industrial / Manufacturing
Oil and Gas
Retail
Transportation
Utilities
