Ericsson Cradlepoint
AER1600LP4
Contact manufacturer
SalesEricsson Cradlepoint
AER1600LP4
Key features
- Business-Grade Performance, Reliability, Analytics and Support
- Includes dual-band dual-concurrent 2.4/5 GHz 802.11 a/b/g/n/ac WiFi; 2 x 2 MIMO with two internal dual-band antennas
- Supports embedded multi-band 4G LTE (bands 2, 4, 13); slot for 2nd modem; dual-SIM slots per modem
- Five 10/100/1000 Ethernet WAN/LAN ports; high-gain external antennas for improved reception in-building and at edge-of-cell
- IPSec VPN Termination and GRE Tunneling, Firewall, IPS/IDS, Secure Web Gateway and more Security Features
Product description

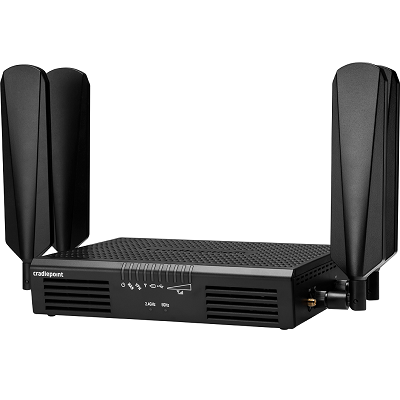

The AER1600 is an enterprise router providing businesses with networking and internet access for mission critical connectivity. Designed for both primary connection and network failover applications, the AER1600 features an embedded LTE radio with support for LTE bands 2, 4 and 13 . It comes with high-gain antennas. It supports WiFi technology and 5 Ethernet ports. This cloud-managed router provides organizations the ability to manage their distributed networks for 24x7 applications.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
5
Dual SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
2
Voltage supply
12 V DC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
8.3x6.9x1.7 in.
Weight
1 lb
Operating Temperature
+32° F
Storage Temperature
−4° F
Relative Humidity
5-90% non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
YES
Routing Protocols
GRE, L2TP, NEMO, VRRP, STP, NHRP, OSPF, BGP, RIP, VTI, Split DNS, DNS Proxy, DNS, DHCP relay/client/server, SIP, IRC, VLAN support (802.1Q)
Security Protocol
IPSec, 802.1x (wired and wireless), TACACS+/RADIUS Authentication
VPN Support
IPSec, OpenVPN, CP Secure VPN
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band13 (700 MHz)
