Eseye LLC
Hera604
Eseye LLC
Hera604
Key features
- Rugged industrial design
- 4 Port Ethernet Switch
- Wi-Fi Access point
- Tunnelling & VPNs using IPSEC / GRE
- onboard AWS IoT Agent
Product description

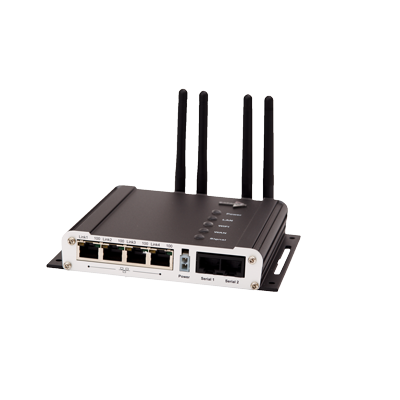

Highly adaptable Enterprise class router for Cellular, Wi-Fi and Ethernet access. The HERA604 is the ideal high speed solution for primary or backup network connectivity. Encased in rugged aluminium the HERA604 routers provide a tough, flexible solution withWi-Fi, Serial and 4 Ethernet. 3 SIMs (including an Eseye Anynet) allow on-board health monitoring to maximises uptime and access ensuring critical services remain connected. AWS IoT agent and Embedded apps on board.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 6
Hardware
Antenna
External
Battery
—
Display resolution
—
Ethernet ports
4
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
9-24V 10W Max 3W typical
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
15.5cmx14.0cmx2.8cm in.
Weight
—
Operating Temperature
-20°C °C to +55 °C
Storage Temperature
-40°C °C to +70 °C
Relative Humidity
5 - 95% non condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
RIP, BGP, ARP
Security Protocol
SSH, SSL
VPN Support
IPSEC
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
