Advantech

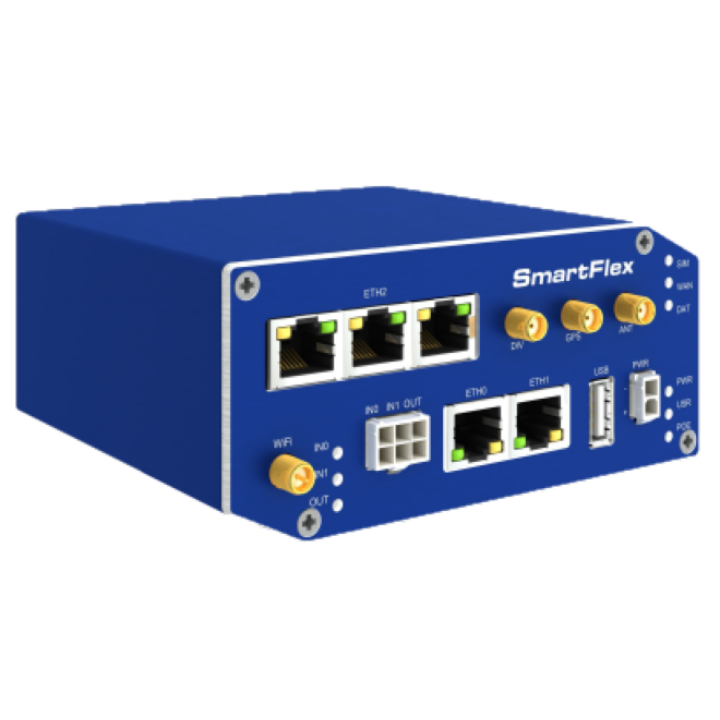

SmartFlex SR305
Contact manufacturer
SalesAddress
707 Dayton Road, PO Box 1040, Ottawa, IL, USA, 61350 United States
Phone
+420 465 521 020
Advantech
SmartFlex SR305
Key features
- Powerful CPU and enhanced memory to support high demand customer applications
- Flexible Port options, such as 3-port Switch, Ethernet and RS232/422/485 serial ports with isolation
- Low power consumption mode for solar and battery power app
- Advanced security features
- MicroSD card holder, GPS and GLONASS support, PoE PD, PoE PSE, In/Out, USB Host, Optional industrial grade WiFi
Product description
Cellular router & gateway for Industrial IOT and business critical application.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 3
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
2
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
10 - 60 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- Checked
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
55x97x125 in
Weight
0.827 lbs
Operating Temperature
-40 °F to °F
Storage Temperature
-40 °F
Relative Humidity
95
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
yes
Routing Protocols
RIP, OSPF, BGP, Static routes
Security Protocol
https, ssh, ftps
VPN Support
OpenVPN, IPSec, EasyVPN, GRE, L2TP
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band13 (700 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Technical support
Address
Phone
Industries
Distribution
Industrial / Manufacturing
Oil and Gas
Professional Services
Transportation
