Sony Electronics Inc
Sony PDT-FP1
Contact manufacturer
SalesAddress
Sony Electronics Inc. 16535 Via Esprillo, San Diego, CA 92127
Phone
1 (855)-806-8464
You will be redirected for purchasing information
Our development kits are currently available through third-party sites. Please choose a vendor below to be redirected for more product and purchasing information.
Vendor(s)Sony Electronics Inc
Sony PDT-FP1
Key features
- High-speed stable communication with simple operability
- Wide compatability livestreaming via HDMI or USB connection
- Optimized antenna design for high-speed data transmission
- Heat dissipation system for enhanced reliability
Product description

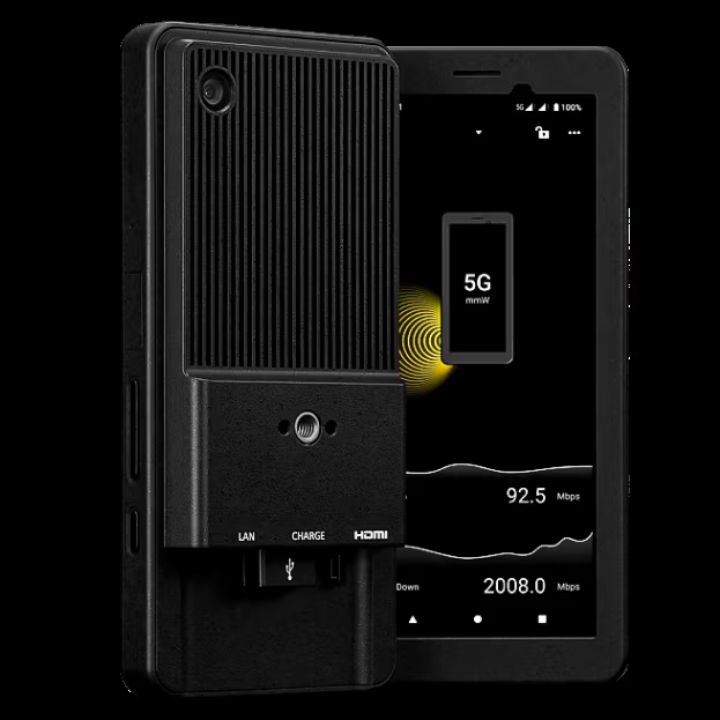

Sony's PDT-FP1 Portable Data Transmitter is forging the future of imaging with 5G to data transfer to the cloud and live streaming with 5G workflow for professionals. It integrates an optimal antenna design, heat dissipation structure, and versatile input interfaces to deliver high-speed and stable communication over 5G mmWave and Sub-6 networks, that fully caters to professional demands, all while offering simple operability.
Overview
- Device type
- Tablet
- Network technology
- 5G NR SA + 5G NR NSA + LTE
- LTE category support
- Cat 20
Hardware
Antenna
—
Battery
5000 mAH
Display resolution
OLED (1080x2520), 6.1 inch
Ethernet ports
1
Dual SIM type
SIM1 - Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Not Applicable
eUICC GSMA Architecture Type:
—
USB ports
2
Voltage supply
—
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- Checked
- Dual SIM
- Checked
- E911
- —
- eUICC
- Checked
- Expansion card slots
- Checked
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- Checked
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Android
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- Checked
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- Checked
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
Chassis
Dimensions
3.71x1.93x.73 in
Weight
10.9 oz
Operating Temperature
32 °F to 104 °F
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band8 (900 MHz)
Band12 (700 MHz)
Band17 (700 MHz)
Band18 (850 MHz)
Band20 (800 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band28 (700 MHz)
Band40 (2300 MHz)
Band41 (2500 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
SA FR1 (Sub6) n2
SA FR1 (Sub6) n5
SA FR1 (Sub6) n48
SA FR1 (Sub6) n66
SA FR1 (Sub6) n77
NSA FR2 (mmWave) n260
NSA FR2 (mmWave) n261
- 5G Global / Roaming
-
NSA FR1 Roaming n66
NSA FR1 Roaming n77
NSA FR1 Roaming n78
NSA FR2 Roaming n257
Contact
Website
Technical support
Address
Phone
Industries
Airborne Usage
Media and Entertainment
Professional Services
