InHand Networks

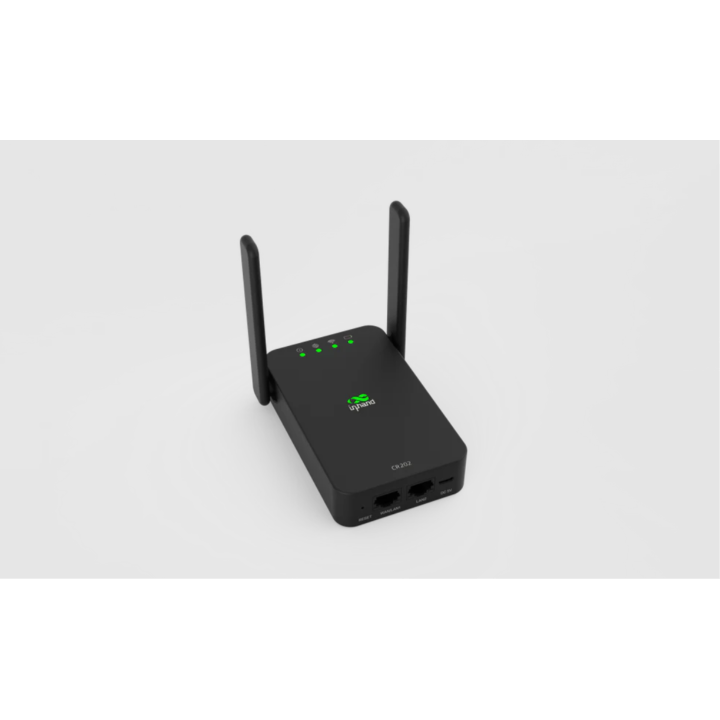

CR202-NAC6-WLAN-B-Lite
Contact manufacturer
SalesAddress
3650 Concorde Pkwy Suite 200 Chantilly, VA 20151
Phone
(703) 348-2988
You will be redirected for purchasing information
Our development kits are currently available through third-party sites. Please choose a vendor below to be redirected for more product and purchasing information.
Vendor(s)InHand Networks
CR202-NAC6-WLAN-B-Lite
Product description
The CR202-Lite is a versatile cellular router that integrates various network access technologies, including 4G, Wi-Fi, and wired connections. This integration empowers the router with powerful network access capabilities, providing a high speed data pathway in any scenario.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 6
Hardware
Antenna
—
Battery
3000 mAh
Display resolution
N/A
Ethernet ports
2
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
5V
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Private Wireless Network (On Site)
-
LTE CBRS
Chassis
Dimensions
12.2x9.08x2.64 in
Weight
8.29 oz
Operating Temperature
-10 °C to 50 °C
Storage Temperature
-20 °C to 60 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
SNAT, DNAT
Routing Protocols
Static routing
Security Protocol
HTTPS, SSH
VPN Support
IPSEC VPN, OPENVPN, WireGuard, ZeroTier
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- Checked
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
