Asiatelco Technologies Co.

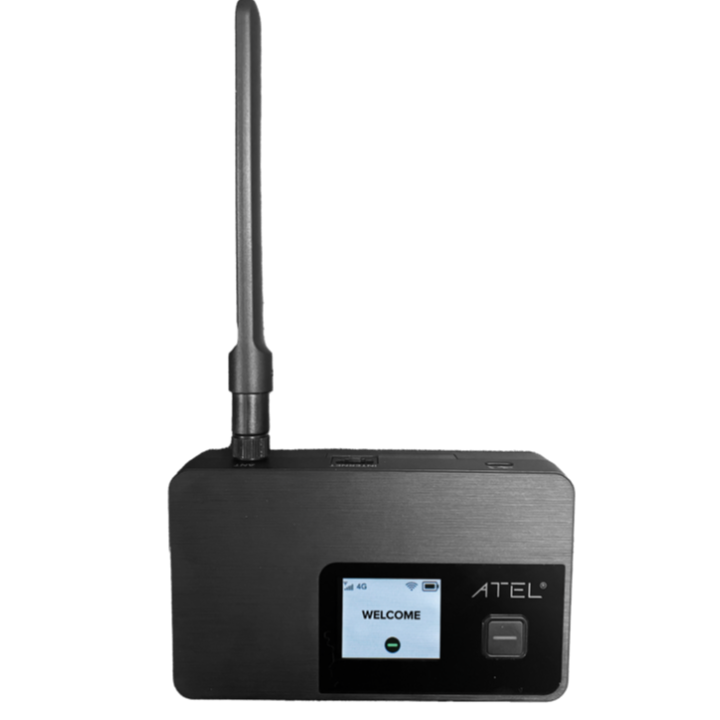

V810AD
Contact manufacturer
SalesAsiatelco Technologies Co.
V810AD
Key features
- LTE CAT-4 , VoLTE enabled
- WiFi 2.4GHz ( IEEE 802.11 b/g/n) & 5GHz ( 802.11 n/ac) optional
- LCD display
- 2xRJ11 Port , 1x RJ45 Port & 1 Type-C USB Port
Product description
The V810AD AXIS is a Cat-4 LTE Fixed Wireless Access terminal supporting RJ45 Ethernet/WiFi/USB Type C and is a great tool for Internet Gateway, Hotspot. It offers flexibility ranging from home/small office internet connectivity, monitoring capabilities requiring constant Cat4 LTE, other features such as; Hotspot for up to 15 users.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
1
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- Checked
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- Checked
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- Checked
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
—
Weight
—
Operating Temperature
—
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
OSPF,BGP, Dynamic Type
Security Protocol
TLS
VPN Support
OpenVPN
Numbershare
N - no Numbershare
- Fax capable
- Checked
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
