TELIT IOT SOLUTIONS INC.
CMB100A0-WW
Contact manufacturer
SalesAddress
5425 Page Rd, Suite 120, Durham, NC, 27703
Phone
+1 888 846 9773
TELIT IOT SOLUTIONS INC.
CMB100A0-WW
Key features
- CMB100A0 Cat.4, 3GPP release 10 compliant
- Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands
- Simultaneous support of GPS, Glonass, Bei-dou, Galileo, QZSS
- Built in UDP/TCP/FTP/SMTP stack
- SIM application Tool Kit 3GPP TS 51.014

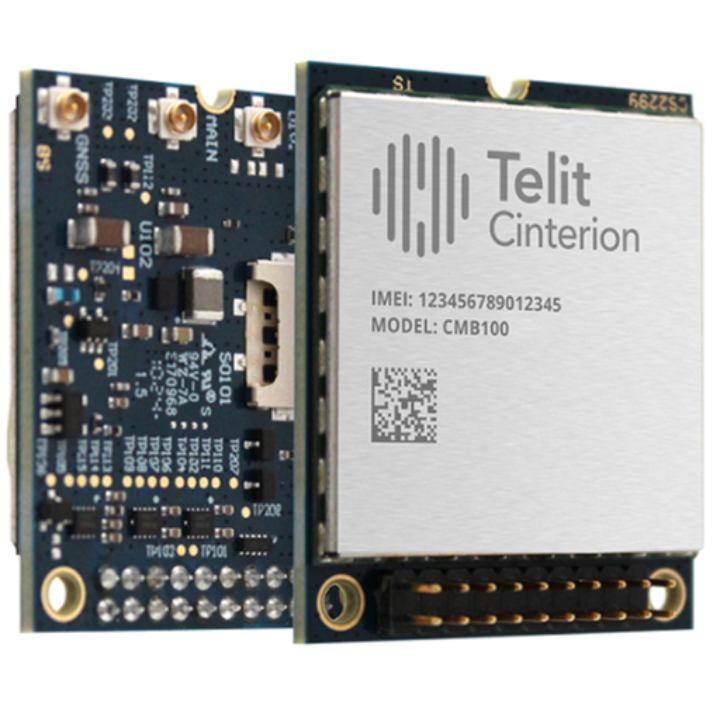

Product description
The CMB100 series is Telit’s first generation of end device certified LTE modules. The CMB100 gives our customers the ability to add reliable LTE connectivity to products while reducing:
• Costs associated with development
• Costs of certification
• Risk associated with LTE product development
• Re-spins and recerts for radio changes
• Time to market
Overview
- Device type
- Modem
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
—
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
—
Voltage supply
Nominal: 3.8 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- Checked
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- Checked
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
1.417x1.181x0.216 in
Weight
lbs
Operating Temperature
-40 °C to 85 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- —
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
