Peplink

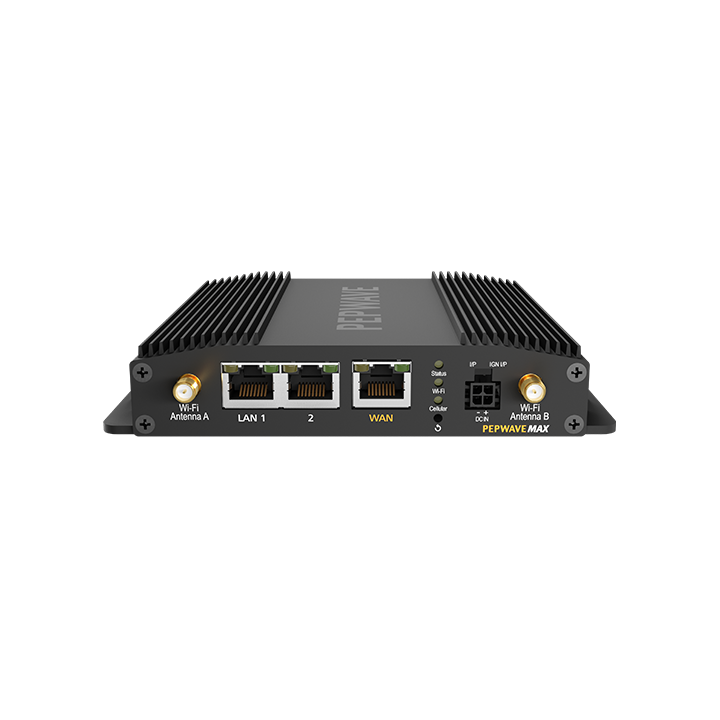

MAX-BR1-MINI-LTEA-US-T-PRM
Peplink
MAX-BR1-MINI-LTEA-US-T-PRM
Key features
- 1x embedded LTE-A cellular modem (Downlink/Uplink: CAT-7: 300Mbps/150Mbps)
- Simultaneous dual-band Wi-Fi 6
- Power port with GPIO and Ignition Sensing
- Remote Central Management with InControl 2
Product description
The MAX BR1 Mini is a single cellular router at an affordable price for large-scale deployments. This small form-factor device with cellular, Ethernet, and/or Wi-Fi WAN capabilities is optimally suited for M2M/IoT or mobile applications to improve network resilience..
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 7
Hardware
Antenna
—
Battery
NA
Display resolution
NA
Ethernet ports
3
Dual SIM type
SIM1 - Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
eUICC GSMA Architecture Type:
Consumer (GSMA SGP.22)
USB ports
0
Voltage supply
10-30 V DC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- Checked
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- Checked
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- Checked
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- —
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
5.0x4.2x1.4 in
Weight
0.95 lbs
Operating Temperature
-40° °F to 149 °F
Storage Temperature
-40 °F to 149 °F
Relative Humidity
10% – 85% (non-condensing)
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
One-to-one, one-to-many
Routing Protocols
Static, Dynamic, OSPF, RIPv2, BGP
Security Protocol
Yes
VPN Support
PepVPN, IPSec, L2TP
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
