Teltonika Networks UAB
RUT361
Contact manufacturer
SalesAddress
K. Barsausko st. 66, LT-51436, Kaunas, Lithuania
Phone
+370 3 721 6110
Teltonika Networks UAB
RUT361
Key features
- OpenVPN, PPTP/L2TP, IPSec, GRE Tunnel, Ping Reboot, Web Filter
- Dynamic DNS, QoS, Periodic Reboot, SMS Control/Gateway, SNMP, Mobile on Demand, Hotspot
Product description

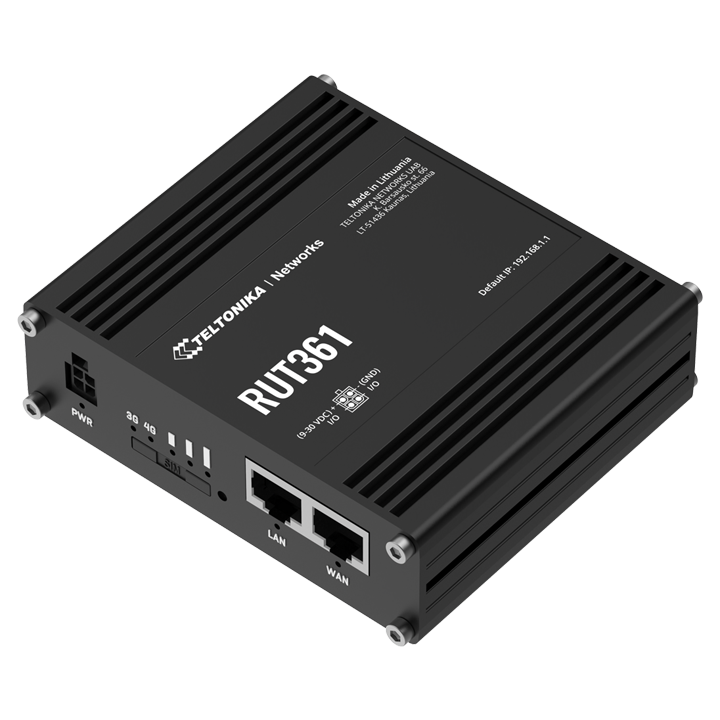

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 6
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
2
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
9-30 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- Checked
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Private Wireless Network (On Site)
-
LTE CBRS
Chassis
Dimensions
3.94x3.67x1.18 in
Weight
0.535 lbs
Operating Temperature
-40 °C to 75 °C
Storage Temperature
-45 °C to 80 °C
Relative Humidity
10 % to 90 % non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
Static and Dynamic routes
Security Protocol
SSL v3
VPN Support
OpenVPN, PPTP/L2TP, IPSec, GRE Tunnel
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- Checked
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
