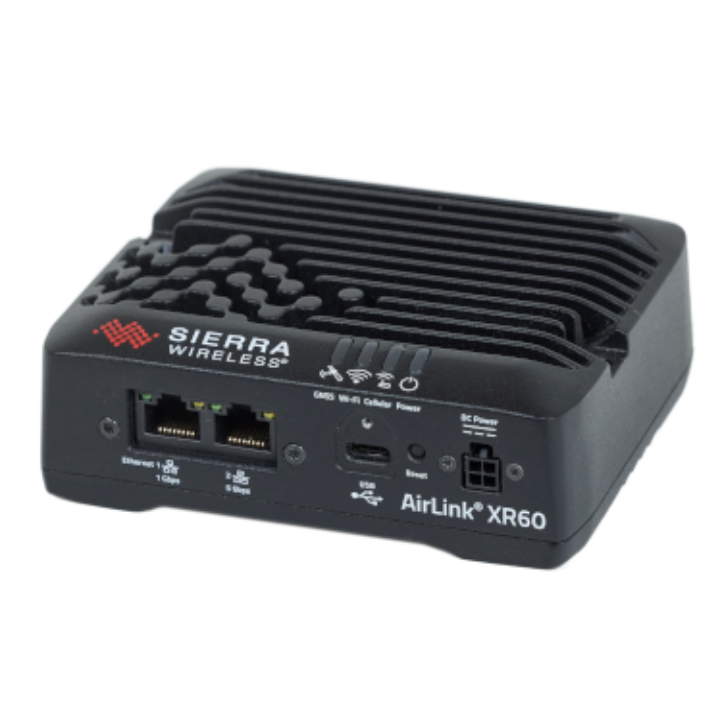

Sierra Wireless
XR60 5G 9291
Contact manufacturer
SalesAddress
13811 Wireless Way Richmond, British Columbia Canada, V6V 3A4
Phone
877-687-7795
Sierra Wireless
XR60 5G 9291
Product description
The AirLink® XR is a high performance 5G networking platform, purpose built to provide secure, always-on connectivity for mission critical and business applications in public safety, industrial and enterprise.
With 5G connectivity, the AirLink XR60 offers 5G sub-6 GHz and LTE Cat-20 to provide high speed connectivity in 4G and 5G coverage. AirLink delivers best in-class performance and reliability, whilst ensuring continual operation even in harsh environments.
Overview
- Device type
- Router
- Network technology
- 5G NR SA + 5G NR NSA + LTE + Global Bands
- LTE category support
- Cat 20
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
2
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
7 to 36 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- Checked
- Multi-APN
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
—
LTE Licensed
5G Licensed
5G CBRS
Chassis
Dimensions
xx in
Weight
lbs
Operating Temperature
-30 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
95% RH @ 60C
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
Static, Policy Based
Security Protocol
SSH, HTTPS, TLS, DTLS
VPN Support
IPsec
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- —
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band8 (900 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band17 (700 MHz)
Band18 (850 MHz)
Band20 (800 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band28 (700 MHz)
Band40 (2300 MHz)
Band41 (2500 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
- 5G Global / Roaming
-
NSA FR1 Roaming n66
NSA FR1 Roaming n77
NSA FR1 Roaming n78
