MioWORK
MioWORK F840
Contact manufacturer
SalesAddress
No.200, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.)
Phone
886-3-396-1888
MioWORK
MioWORK F840
Key features
- 8" Android™ 13.0 (GMS), IP54, 1.8m drop, Built-in LTE, Wi-Fi, NFC, Bluetooth, GPS
Product description

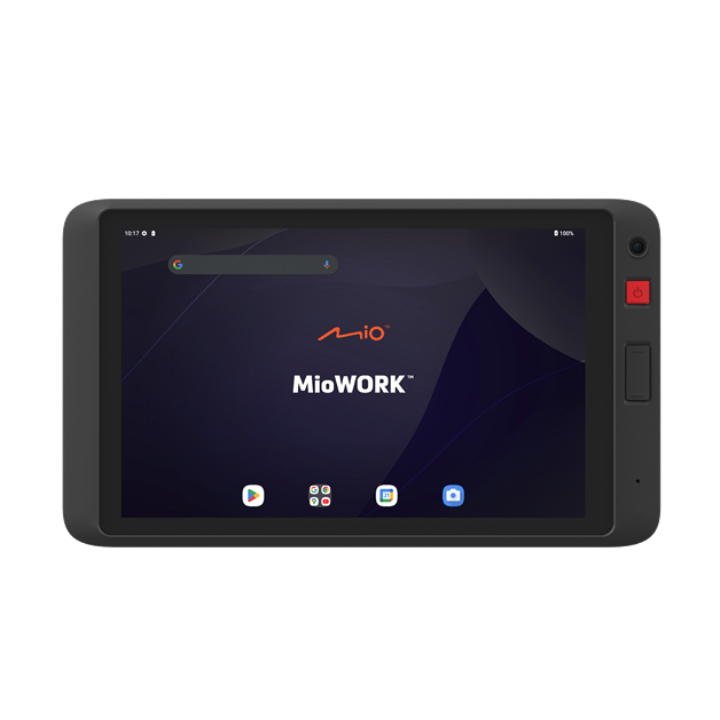

MioWORK™ F840 is an enterprise-grade Android™ tablet designed for demanding conditions. The large 8” touchscreen features an anti-glare coating, is rain resistant and supports glove
touch, guaranteeing uninterrupted performance in and out of the vehicle. Powered by Qualcomm Octa-core processor, advanced LTE and WiFi capabilities, the F840 will provide all the processing power needed for your applications while keeping you connected with your fleet.
Overview
- Device type
- Tablet
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
0
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Android
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
Chassis
Dimensions
22.55x13.18x20.8 in
Weight
1.08026508 lbs
Operating Temperature
-20 °C to 60 °C
Storage Temperature
-30 °C to 70 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band17 (700 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band41 (2500 MHz)
Contact
Website
www.mitacmdt.com/en/
Technical support
Address
Phone
Industries
Industrial / Manufacturing
Public Safety
Tablets
Transportation
