Elster Solutions, a Honeywell Company
AC250NXS
Key features
- Electronic temperature compensation;
- Supports local and remote valve control;
- Long battery life (20 years);
- State-of-the-art data security and data protection (AES-128 symmetric keys);
- Gas Meter with Advanced Safety Shut-off features
Product description

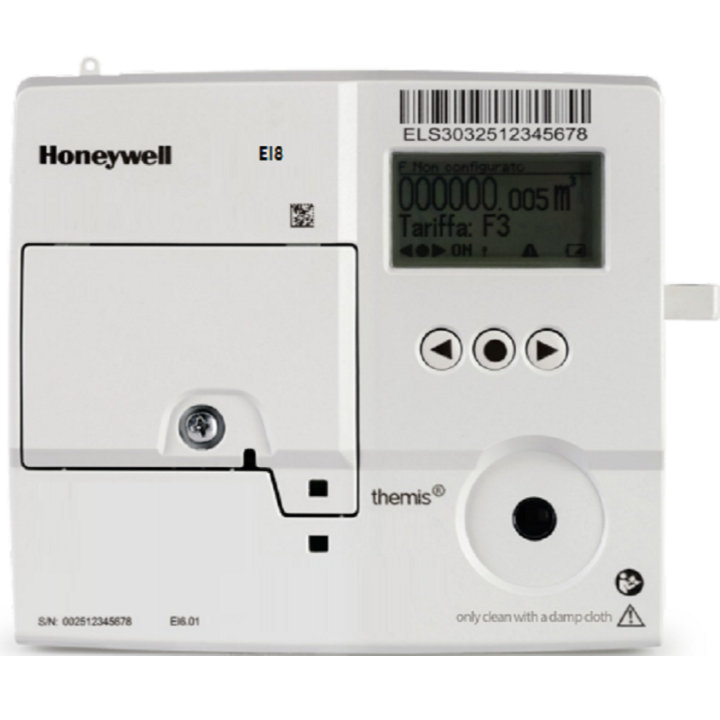

Smart electronic index for Honeywell residential and commercial diaphragm gas meters
MAIN FEATURES:
LTE Cat M1 communication with Always On feature using eDRX mode; Electronic temperature compensation; Supports local and remote valve control; Long battery life (20 years); Extended smart metering functions; State-of-the-art data security and data protection (AES-128 symmetric keys); Supports secure, over the air firmware updates; Battery can be replaced in the field without loss of data;
Overview
- Device type
- Utility / Smart Grid
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
2 D-Size Batteris
Display resolution
Dot Matrix
Ethernet ports
0
SIM type
Industrial Soldered SIM (MFF2 Embedded)
Learn More... M2M/IoT SIM SKU and Procurement Information
Compatible MFF2 SIM SKUs:
For CAT-M1 Devices:
- M2MTC-MFF2-A
- M2MTC-MFF2-D
- M2MSIM-HD-D
- M2MTC-MFF2-S
- M2MTC-MFF2-I
For Non CAT-M1(Cat 1, Cat 2, Cat 3, Cat 4,and above) Devices:
- MFF2-GT-A
- MFF2-AUTO-GT-A
- MFF2-GD-D
- MFF2-AUTO-GD-D
- M2MSIM-HDI-D
- MFF2-ST-S
- MFF2-AUTO-ST-S
- MFF2-ID-I
USB ports
0
Voltage supply
3.6V
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
—
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
9x10.6x7.2 in.
Weight
1.2 lbs
Operating Temperature
-40 °F to 158 °F
Storage Temperature
-40 °F to 158 °F
Relative Humidity
95%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band12 (700 MHz)
