ATEL
PW550
Contact manufacturer
SalesAddress
8821 Research Drive, Irvine, CA 92618, USA
Phone
949-353-0002
You will be redirected for purchasing information
Our development kits are currently available through third-party sites. Please choose a vendor below to be redirected for more product and purchasing information.
Vendor(s)ATEL
PW550
Key features
- 5G NR supported
- LTE UE Category 19 for Downlink & Category 18 for Uplink
- 1x Gigabit Ethernet Ports with PoE
Product description

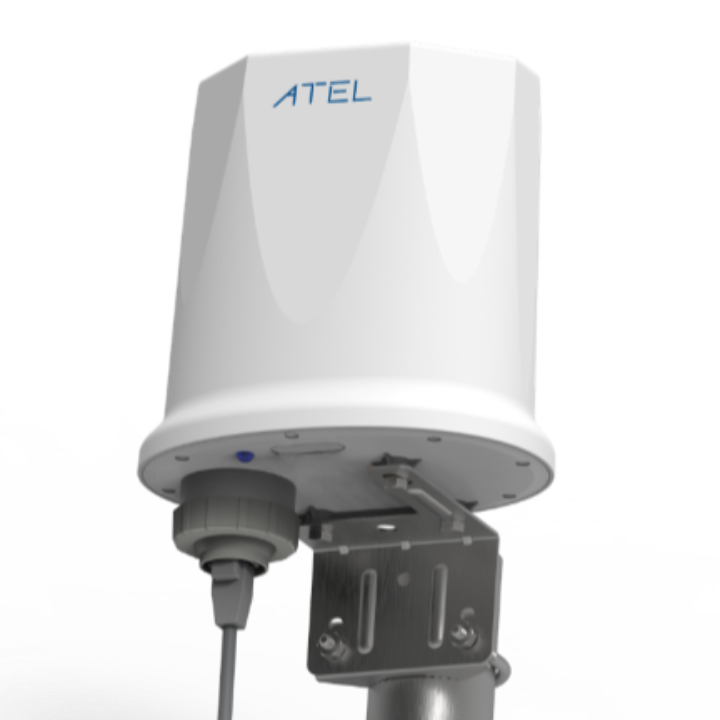

ATEL’s outdoor CPE PW550 is designed to
provide high speed internet connection over
5G/4G cellular network. The Power-over-Ethernet
technology helps utilizing single standard Ethernet
cable to bring data from outdoor to indoor, while
to bring DC power from indoor to outdoor
Overview
- Device type
- Router
- Network technology
- 5G NR NSA + LTE
- LTE category support
- Cat 19
Hardware
Antenna
—
Battery
Not Support
Display resolution
No Display support
Ethernet ports
1
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
24V DC Passive PoE
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
7.5x5x10 in.
Weight
1.65 lbs
Operating Temperature
-20 °C to 60 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
5% ~ 95% (Non-Condensing)
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
Symmetric NAT
Routing Protocols
Static Routing
Security Protocol
TLS, HTTPS
VPN Support
PPTP, L2TP, IPsec, VPN Passthrough
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
