Sierra Wireless

GL7812

Contact manufacturer
Sales
Address

13811 Wireless Way Richmond, BC V6V3A4 CA

Phone

877-687-7795

Sierra Wireless

GL7812

Key features
  • IoT Modem
See more
Product description

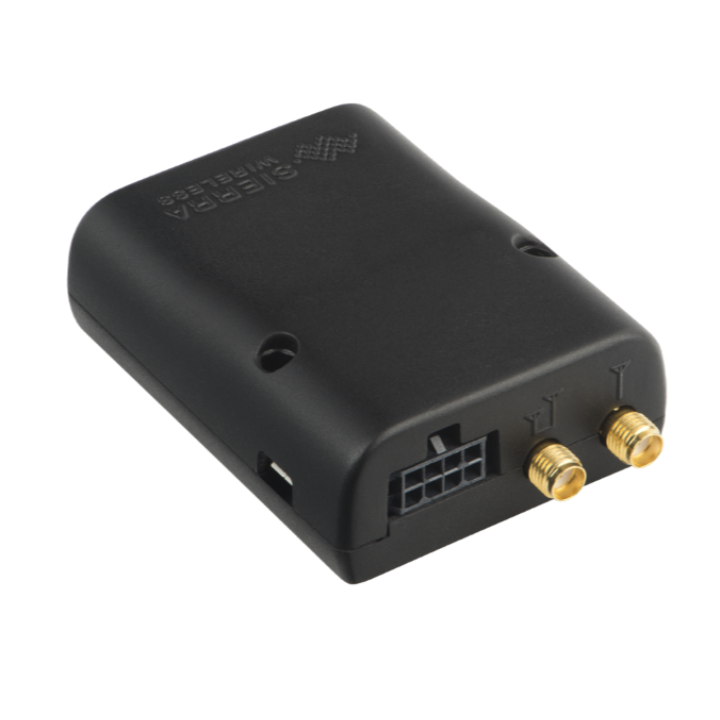

The GL7812 is a wireless modem that allows users to connect to a wireless network. It offers data connectivity on GNSS, 2G, and Cat-M1 networks.. It was designed using the HL7812 embedded module.

See more
Overview
Device type
Modem
Network technology
LTE with GSM/UMTS
LTE category support
Cat M1
Hardware
Antenna

Battery

Display resolution

Ethernet ports

0

SIM type

Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

1

Voltage supply

6-24V

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
Dual SIM
E911
eUICC
Expansion card slots
GNSS
GPS

Keyboard
Magnetic card reader
Printer
RJ-11
Scanning technology
Serial
Checked
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Other


Developer Kit
Diagnostics
Security Level
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
Checked
Private Wireless Network (On Site)
Chassis
Dimensions

6.7x5.15x2.35 in.

Weight

1.45 oz

Operating Temperature

-30 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Relative Humidity

85%


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare

Supported Global/Roaming Markets
Canada/Mexico
Europe
Asia
Puerto Rico/Latin America

Fax capable
Firewall
UMTS
LTE

Band4 (1700 MHz)

Band13 (700 MHz)

LTE Global / Roaming

Band12 (700 MHz)

GSM

1800 MHz

1900 MHz

850 MHz

900 MHz
