Digi International Inc
50002094
Digi International Inc
50002094
Key features
- Support for Rugged Industrial Environment
- Battery powered remote monitoring
- Support for 1 Digital IOs
- Support for 4 Analog IO
- Support for 1 RS-485 sensor
Product description

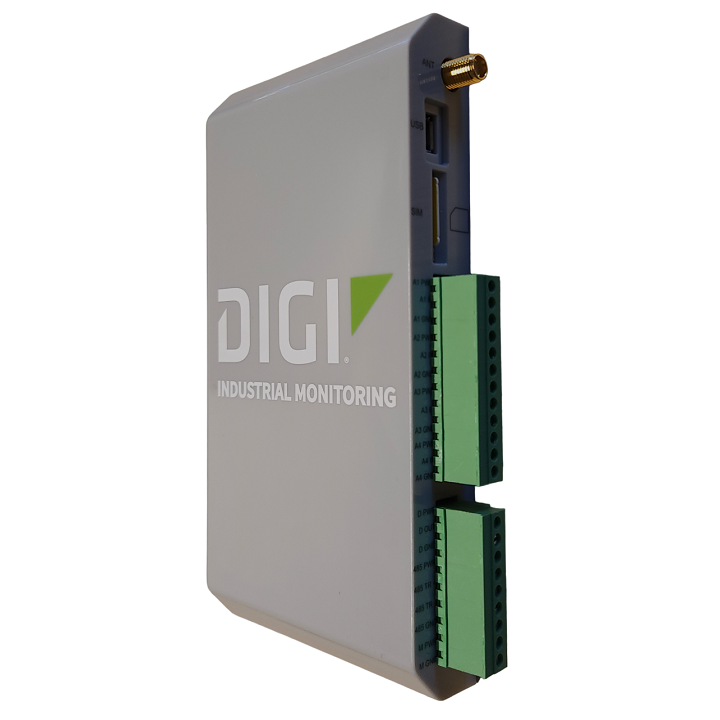

Digi Connect Sensor is a fully integrated, battery powered cellular gateway with I/O for connecting to a wide range of external sensors. Designed to work in rugged industrial environments, the sensor is the ideal solution for companies looking to add remote monitoring in places where power is not easily available. Its easy installation, reliability and low data usage make remote monitoring possible in areas where it was previously cost prohibitive
Overview
- Device type
- Remote Monitoring and Control
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
7.2VDC
Display resolution
N/A
Ethernet ports
0
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
9-30VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
RTOS
- Developer Kit
- —
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- —
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- Checked
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- —
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
5.8x3.0x0.875 in.
Weight
0.45 lbs
Operating Temperature
-35 °F to 70 °F
Storage Temperature
-40 °F to 85 °F
Relative Humidity
90%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
N/A
Security Protocol
TLS 1.3
VPN Support
—
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Industries
Agricultural
Industrial / Manufacturing
Oil and Gas
Utilities
