Cradlepoint

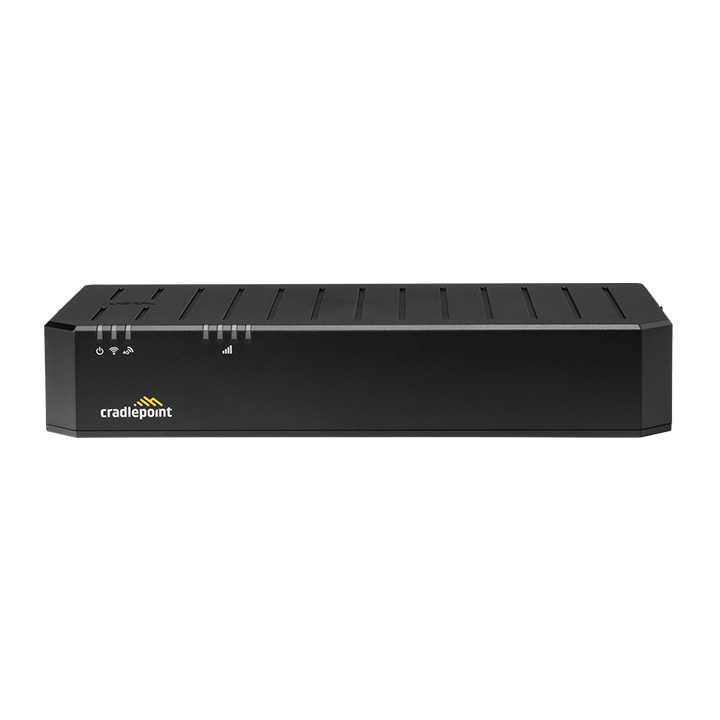

E100-5GC
Key features
- Embedded, 5GC modem for fast day-1 or primary connectivity
- Integrate into your existing network with dynamic routing and VPN tunnel support
Product description
The E100-5GC is part of Cradlepoint 5G Enterprise product line and is the latest 5GC device. The E100-5GC is ideally suited for enabling mission-critical employees to work from home or outside the office with the same services, security, ease of management, and optional battery backup.
Overview
- Device type
- Router
- Network technology
- LTE with GSM/UMTS and 5G NR NSA
- LTE category support
- Cat 19
Hardware
Antenna
—
Battery
1X Backup batteries; 12.2 oz ea
Display resolution
—
Ethernet ports
5
Dual SIM type
SIM1 - Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
12 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- Checked
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
-
LTE Licensed
LTE CBRS
5G Licensed
Chassis
Dimensions
5.3x10.6x1.9 in.
Weight
1.1 lbs
Operating Temperature
0 °C to 40 °C
Storage Temperature
-20 °C to 70 °C
Relative Humidity
5% to 95%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
GRE, L2TP, NEMO, VRRP, STP, NHRP, OSPF, BGP, RIP, VTI, Split DNS, DNS Proxy, DNS, DHCP relay/client/server, SIP, IRC, VLAN support (802.1Q)
Security Protocol
IPSec, 802.1x (wired and wireless), TACACS+/RADIUS Authentication
VPN Support
IPSec, OpenVPN, CP Secure VPN
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band8 (900 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band17 (700 MHz)
Band18 (850 MHz)
Band20 (800 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band28 (700 MHz)
Band40 (2300 MHz)
Band41 (2500 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
- 5G Global / Roaming
-
NSA FR1 Roaming n66
NSA FR1 Roaming n77
NSA FR1 Roaming n78
