NETGEAR, Inc

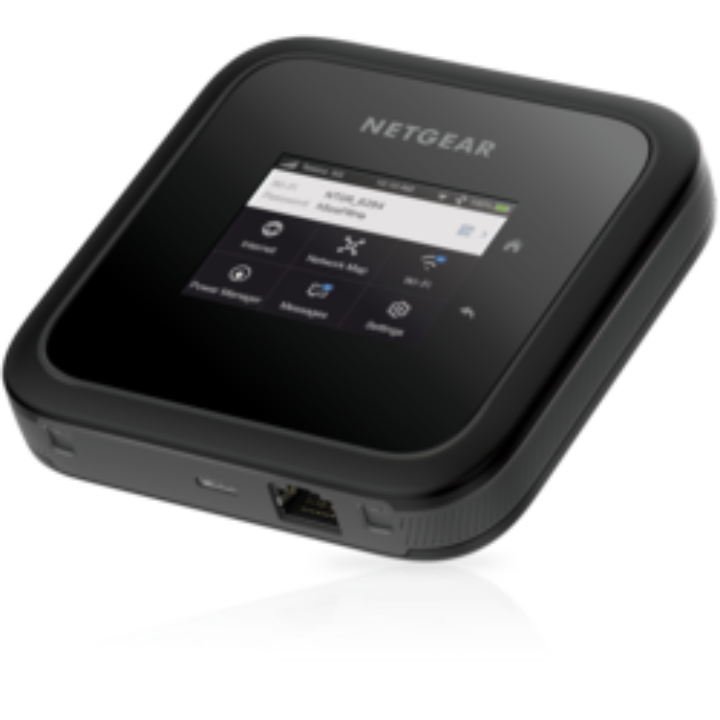

Nighthawk M6 MR6220 Mobile Router
NETGEAR, Inc
Nighthawk M6 MR6220 Mobile Router
Key features
- Super-fast and reliable 5G router with 4G fallback for seamless internet access.
- 1GbE LAN/WAN port for high-speed wired connectivity.
- Dual-Band WiFi(2.4GHz, 5GHz) with DBDC operation ensure optimal wireless performance.
- Compact, modern, and portable design for convenient use in various locations.
Product description
Introducing the Nighthawk M6: a compact 5G router delivering high-speed Verizon C-Band connectivity with 4G fallback. Designed for businesses, it's portability meets power, ensuring uninterrupted internet access everywhere. With built-in battery, it stays connected during power outages. Elevate your connectivity with Nightawk M6 - reliable, powerful, and purpose-built for business.
Overview
- Device type
- Modem
- Network technology
- 5G NR NSA + LTE
- LTE category support
- Cat 20
Hardware
Antenna
—
Battery
5040mAh
Display resolution
—
Ethernet ports
1
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
3.85V
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- Checked
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- Checked
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- Checked
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
4.13x4.13x0.79 in.
Weight
—
Operating Temperature
—
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
RFC 3022, 4787, 5382; Support up to 64K concurrent dynamic NAT sessions
Routing Protocols
IPv4 basic routing; Static routing; Dynamic routing RIPv1, RIPv2B/M
Security Protocol
LTE and WCDMA related
VPN Support
No built-on VPN. Host PC can install its own VPN client.
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
- 5G Global / Roaming
-
NSA FR1 Roaming n77
