Queclink
CV200XNA
Product description

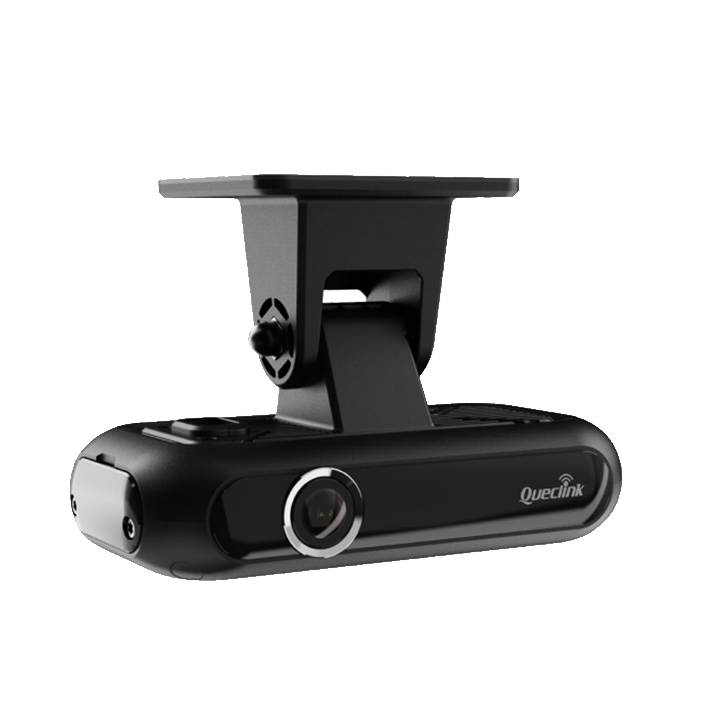

LTE Cat 6 Smart Dash Camera combining telematics features. It can work alone or be connected to an additional second camera to provide an in-cabin view or cargo view. Optional ADAS/DMS also supports wired physical I/O's or BLE to connect various accessories.
Overview
- Device type
- Vehicle Monitoring
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 6
Hardware
Antenna
—
Battery
470mAh
Display resolution
Not supported
Ethernet ports
0
SIM type
Not Applicable
USB ports
1
Voltage supply
8 to 32V DC
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- Checked
- Camera
- Checked
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
—
Operating System
Android
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
12x6x7 in.
Weight
7.76 oz
Operating Temperature
-20 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
0-90%
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- —
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Transportation
