Mercury Innovation Pty Ltd
eModule
Contact manufacturer
SalesAddress
Unit 1, 179-183 Woodpark Rd, Smithfield, NSW, 2164, Australia
Phone
+61401410214
Mercury Innovation Pty Ltd
eModule
Product description

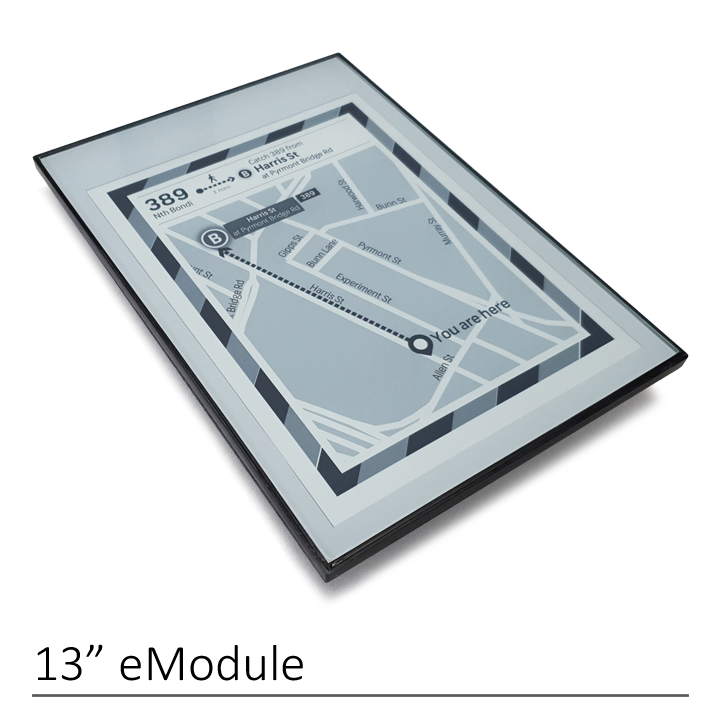

The eModule is an outdoor ready digital display, utilizing EPD technology to provide information to the public as configured by the user. The display is sunlight readable, able to be solar powered and intended for the most rugged installation locations. Units can be configured to include audio outputs, button inputs and added lighting and sensor features.
Overview
- Device type
- Kiosk / Signage
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
LFP, Li-Ion, AGM
Display resolution
1600*1200
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
2.5-16V DC
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- Checked
- Battery safety
- Checked
- Bluetooth
- Checked
- Camera
- Checked
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
9.2x13.1x1.5 in.
Weight
3.9 lbs
Operating Temperature
-20 °C to 60 °C
Storage Temperature
10 °C to 35 °C
Relative Humidity
—
- Rain & dust resistance
- Checked
- Vehicle Mounting
- Checked
Network
NAT
—
Routing Protocols
—
Security Protocol
TLS
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band40 (2300 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Technical support
Address
Phone
Industries
Government
Transportation
