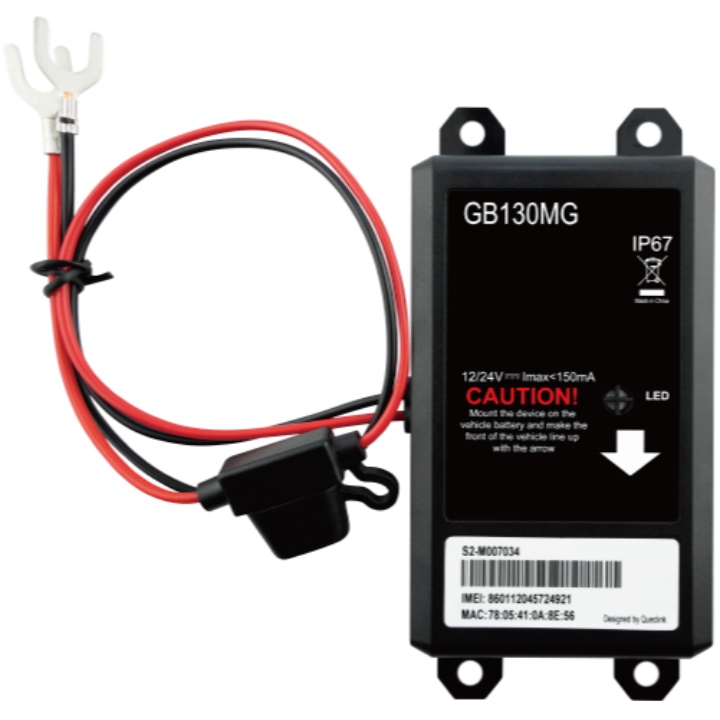

Queclink
GB130MG
Contact manufacturer
SalesAddress
2292 Farraday Ave Suite 100, Carlsbad,CA
Phone
(442)200-1410
Queclink
GB130MG
Product description
The GB130MG is the LTE version of our proven usage-based insurance telematics product GB100P. Its built-in 6-axis accelerometer allows accurate accident data sampled at up to 400 times per second. With built-in BLE it supports wireless accessories; thus allowing the product to be flexible and suitable for applications beyond insurance data acquisition.
Overview
- Device type
- Vehicle Monitoring
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
Internal backup battery
Display resolution
N/A
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
8V to 32V
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
5.30x2.66x0.58 in.
Weight
4.59 oz
Operating Temperature
-30 °C to 70 °C
Storage Temperature
-40 °C to 80 °C
Relative Humidity
95% non-condensing
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
TCP/UDP
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
