ATrack Technology Inc.
AK500
Contact manufacturer
SalesAddress
8F, No. 13, Lane 120, Sec. 1, Neihu Road, Neihu Dist., Taipei City 11493, Taiwan
Phone
+886-2-27975852 ext. 286
ATrack Technology Inc.
AK500
Key features
- 4G LTE (CAT.4)
- Automatically switch GPS Internal & external antenna
- Vehicle Speed Sensor (VSS) supported
- Firmware over the air (FOTA) upgrade via the FTP protocol
- 64 user defined geo-fences in circular, rectangular and polygonal shapes
Product description

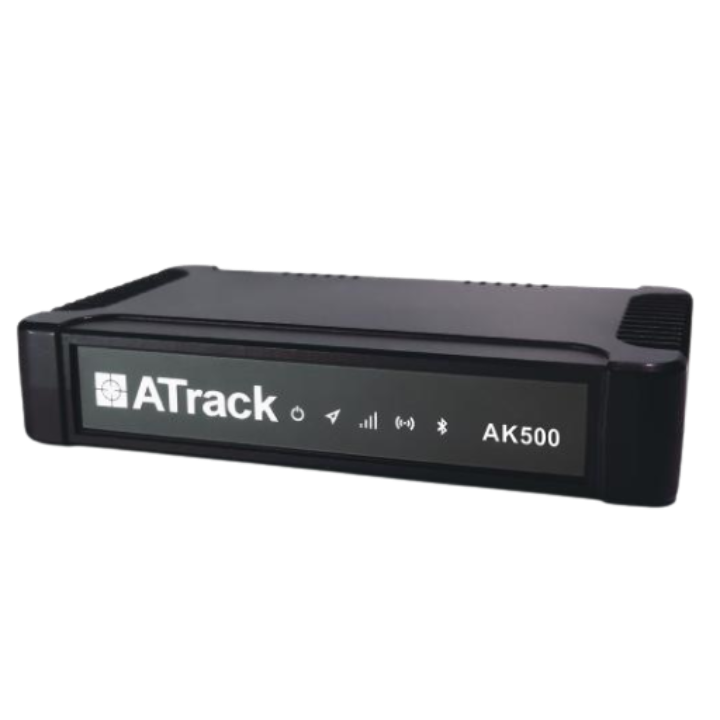

AK500 is a high-speed LTE Cat.4 multi-functional telematics gateway. It provides 2.4GHz, 5GHz Wi-Fi hotspot, Bluetooth, engine diagnostics, live GPS tracking, and multiple interface for various telematics applications .
Overview
- Device type
- Vehicle Monitoring
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
0
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
Vehicle 12V / 24V system
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- Checked
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- Checked
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- Checked
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
Chassis
Dimensions
5.98x3.86x1.18 in.
Weight
0.5 lbs
Operating Temperature
-40 °C to 60 °C
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Industrial / Manufacturing
Insurance
Transportation
