Vision IOT Inc

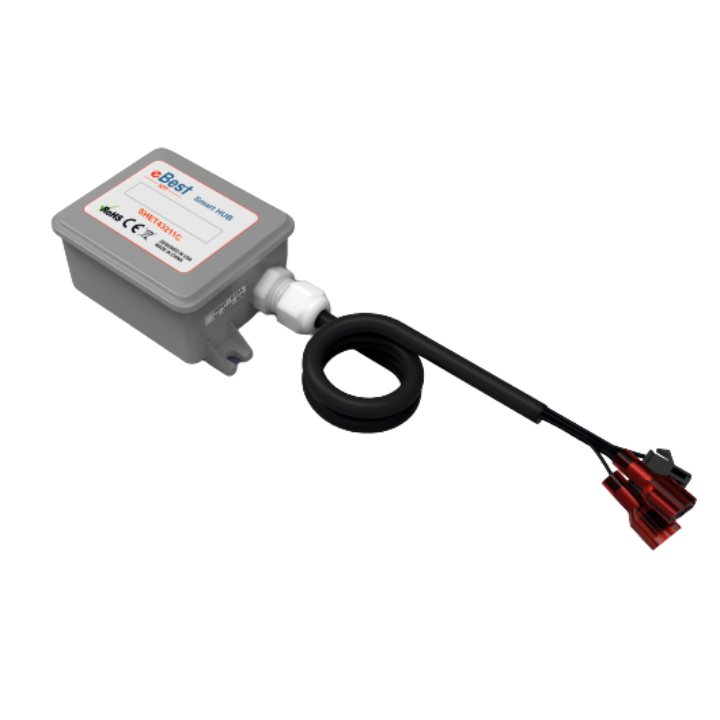

Smart Hub-2
Contact manufacturer
SalesVision IOT Inc
Smart Hub-2
Key features
- Smart Hub draws AC Power from the Asset and also includes 90 Day’s battery backup
- BLE Proximity communication & Bluetooth Beacon (iBeacon, Eddystone)
- Realtime Location using Cell Triangulation or optional GPS or Wi-Fi sniffing
- Rugged Design, with IP64 Protection
- Always-Connected, LTE CAT-1
Product description
Smart Hub-2 is a BLE-enabled device that collects and manages data from various BLE sensors, handles communications functions, and interfaces with the backend cloud platform.
This device is a 4G LTE Cat-1 enabled IoT gateway that can connect BLE-based IoT devices to the cloud by acting as a real-time communication bridge.
Overview
- Device type
- Asset Tracking
- Network technology
- LTE Only
- LTE category support
- Cat 1
Hardware
Antenna
—
Battery
3.7V 400mAh Rechargeable Li-Ion battery
Display resolution
No Display
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
AC Input: 85V to 264VAC 50/60Hz
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
3.15x2.16x1.37 in.
Weight
0.33 lbs
Operating Temperature
-5 °C to 60 °C
Storage Temperature
-20 °C to 60 °C
Relative Humidity
30-50%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Not Applicable
Routing Protocols
TCP
Security Protocol
http
VPN Support
Not Applicable
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Contact
Website
Industries
Industrial / Manufacturing
Retail
