Peplink

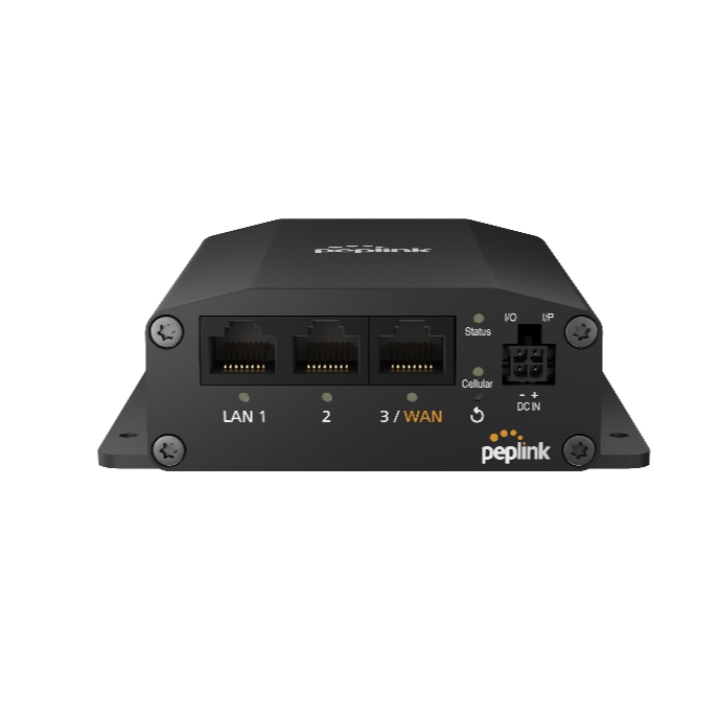

MAX BR1 MINI Core

Key features
  • 1x embedded LTE cellular modem (Downlink/Uplink: CAT-7: 300 Mbps/150 Mbps)
  • High security as less attack surface
  • Power port with GPIO and Ignition Sensing, Multiple power input, PoE
  • Remote Central Management with InControl 2
See more
Product description

The MAX BR1 Mini Core (HW3) is a single cellular router built to fulfill strict security compliances. The BR1 Mini Core does not have GPS and Wi-Fi functions in order to minimize the attack surface. Decent speed, supporting Ignition Sensing and the extra LAN port make the HW3 version a more powerful option for your deployment.

See more
Overview
Device type
Router
Network technology
LTE with GSM/UMTS
LTE category support
Cat 7
Hardware
Antenna

Battery

NA

Display resolution

NA

Ethernet ports

3

Dual SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

10V – 30V DC

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
GPS

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
Checked
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Fixed Wireless Access (FWA)
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Chassis
Dimensions

5.0x4.2x1.4 in.

Weight

0.95 lbs

Operating Temperature

-40° °F to 149 °F

Storage Temperature

-40 °F to 149 °F

Relative Humidity

15% – 95% (non-condensing)


Rain & dust resistance
Vehicle Mounting
Network
NAT

One-to-one, one-to-many

Routing Protocols

Static, Dynamic, OSPF, RIPv2, BGP

Security Protocol

Yes

VPN Support

PepVPN, IPSec, L2TP

Numbershare

N - no Numbershare


Fax capable
Firewall
Checked
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)

Band66 (1700 MHz)
