Lantronix Inc

G520 Series IoT Cellular Gateway

New
Contact manufacturer
Sales
Address

48 Discovery, Suite 250 Irvine, CA 92618 USA

Phone

1 949 453-3990

Lantronix Inc

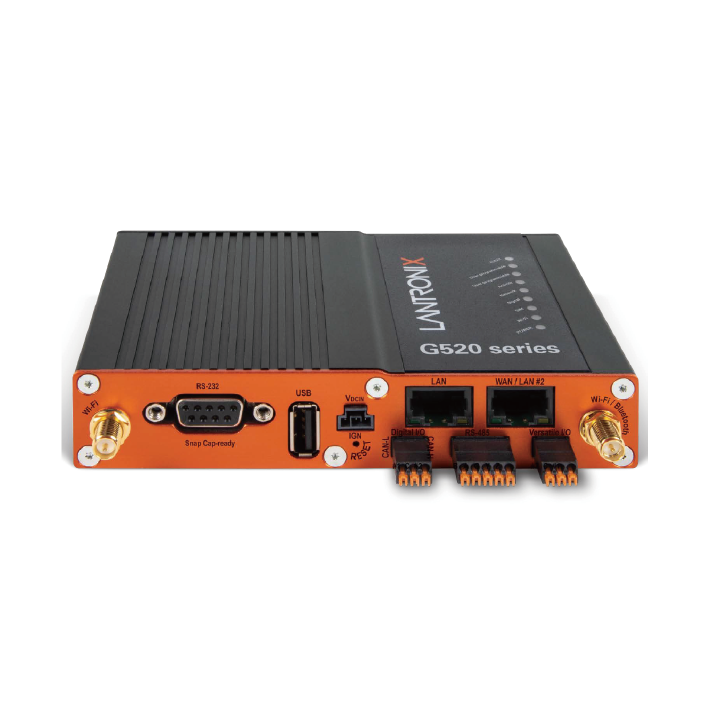

G520 Series IoT Cellular Gateway

Key features
  • Ethernet
  • Serial port
  • Fieldbus conversion
  • PoE
See more
Product description

The G520 series offers LTE Cat 4 and 5G industrial-grade cellular gateways that address the demands of Industry 4.0, security, and transport applications. With multiple variants providing vertical configuration and clear market differentiators, the G520 series cellular gateways make it possible to combine multiple application use cases in a compact, highly secure, industrial-grade platform.

See more
Overview
Device type
Router
Network technology
LTE Only
LTE category support
Cat 7
Hardware
Antenna

Battery

Display resolution

Ethernet ports

2

Dual SIM type

SIM1 - Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

SIM2 - Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

1

Voltage supply

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Checked
Camera
Dual SIM
Checked
E911
eUICC
Expansion card slots
GNSS
Checked
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ-11
Scanning technology
Serial
Checked
Smart card reader
Voice transmission capable
Wifi
Checked
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

OMADM

Operating System

Linux


Developer Kit
Diagnostics
Security Level
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
Private Wireless Network (On Site)
Chassis
Dimensions

81.27x131.5x25 in.

Weight

0.74 lbs

Operating Temperature

30 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Relative Humidity


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)

Band66 (1700 MHz)
