Teltonika Networks UAB
RUT956AF
Contact manufacturer
SalesAddress
K. Barsausko st. 66, LT-51436, Kaunas, Lithuania
Phone
+370 3 721 6110
Teltonika Networks UAB
RUT956AF
Key features
- OpenVPN, PPTP/L2TP, IPSec, GRE Tunnel, Ping Reboot, Web Filter
- Dynamic DNS, QoS, Periodic Reboot, SMS Control / Gateway, SNMP, Mobile on Demand, Hotspot
- VLAN, VRRP, Bridge, Load balancing, Backup WAN
Product description

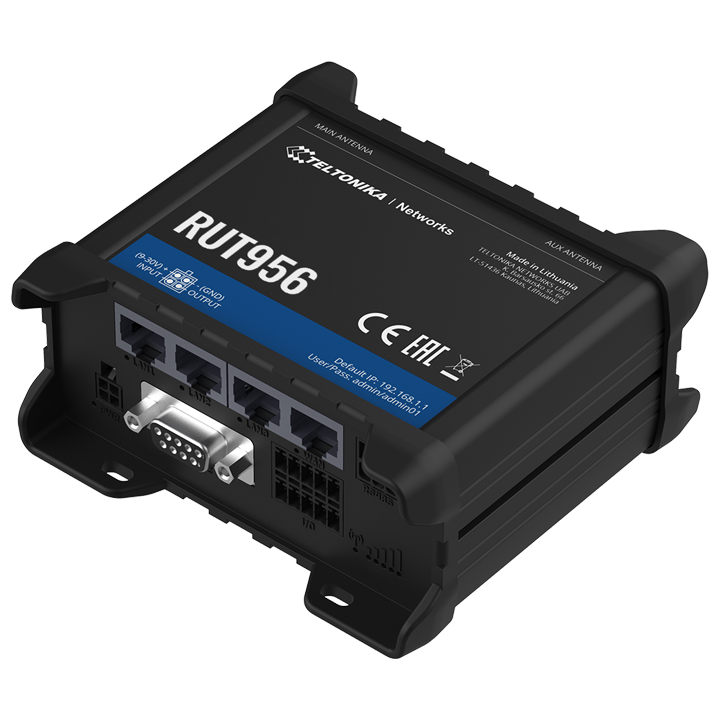

RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities. The device is equipped with 4x Ethernet ports, WiFi, Dual-SIM, GNSS connectivity, an I/O connector block, and RS232/RS485 ports.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
4
Dual SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
9-30 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- LTE Licensed
Chassis
Dimensions
3.94x4.33x1.97 in.
Weight
0.63 lbs
Operating Temperature
-40 °C to 75 °C
Storage Temperature
-45 °C to 80 °C
Relative Humidity
10% to 90% non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
Static and Dynamic routes
Security Protocol
SSL v3
VPN Support
OpenVPN, PPTP/L2TP, IPSec, GRE Tunnel
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
