Key features
- Rugged Router with LTE-A Cellular+ WiFi/Proprietary Licensed/Unlicensed Radios
- Static/RIPv2/OSPFv2/BGPv4 Routing, Bridging/VLANs, Modbus TCP/RTU/ASCII Serial Server
- Secure Boot, Firewall, IPsec VPN/DMVPN, RADIUS, Syslog-Over-TLS, WiFi WPA/WPA2
- CLI (SSH/Console), NETCONF, SNMP, Events/Alarms
- Operating temperature: -40 to 70C, Class 1 Div 2 Certified for hazardous locations
Product description

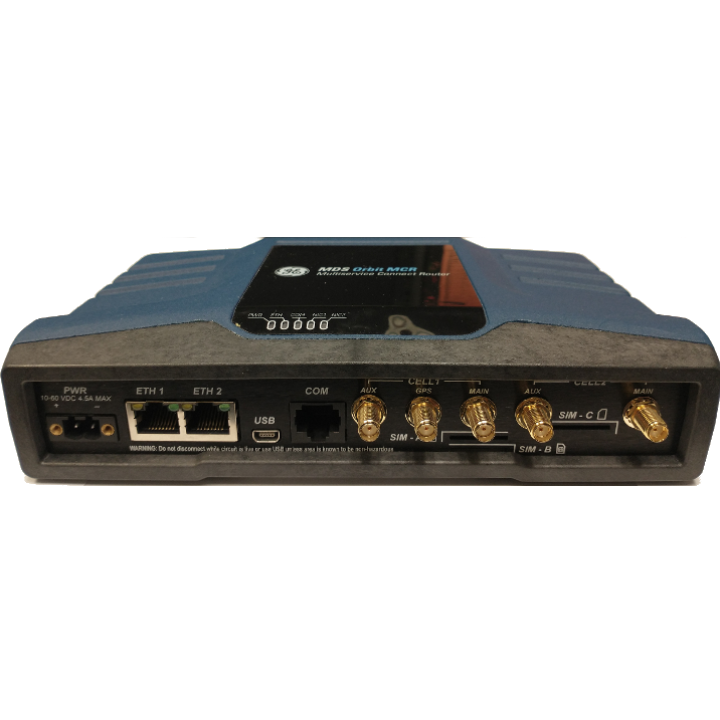

GE MDS MCR (Multi-Service Connect Router) is an industrial grade cellular router designed to securely connect remote devices to the enterprise network. It features multiple connectivity options, advanced cyber security and networking functionality along with industry leading reliability for critical applications. It can also incorporate a second radio to provide wireless connectivity using second cellular, Wi-Fi or our proprietary licensed/unlicensed long-range narrowband/wideband radios.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 12
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
2
Dual SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
10-60VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- Checked
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- Checked
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
8"x4.8” Wx1.75" in.
Weight
1.55lbs lbs
Operating Temperature
70 °C to °C
Storage Temperature
-40 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
Source, Destination, Static NAT
Routing Protocols
RIPv2, OSPFv2, BGPv4
Security Protocol
IPSec VPN (IKEv1/v2) PSK/RSA based, AES 128/192/256, SHA256/512, DMVPN, FlexVPN
VPN Support
IPsec VPN, L2/L3 GRE. DMVPN
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
