Palo Alto Networks

ION 1200-S-C-NA

Contact manufacturer
Sales
Address

3000 Tannery Way, Santa Clara, CA. 95054

Phone

(866) 320-4788

Email
https://www.paloaltonetworks.com/sase/sd-wan
Palo Alto Networks

ION 1200-S-C-NA

Key features
  • SD-WAN
See more
Product description

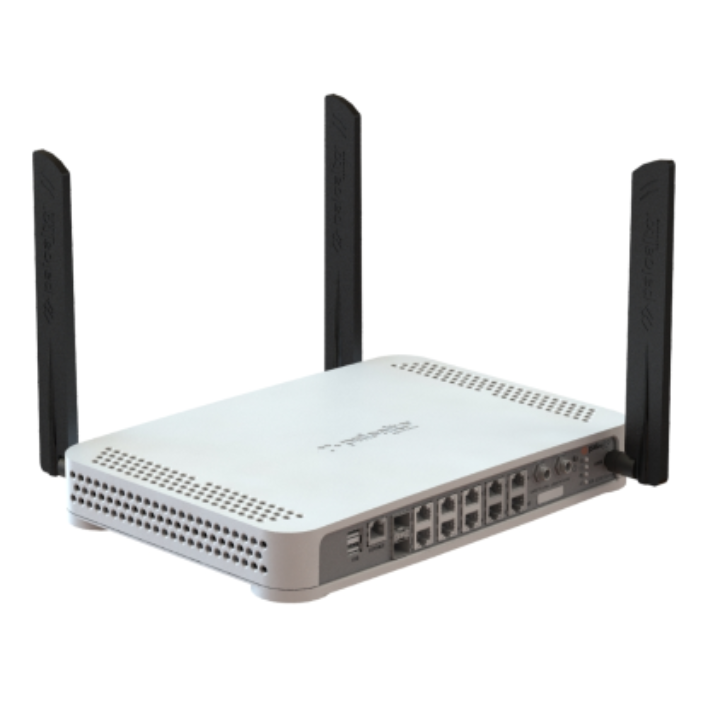

Prisma SD-WAN ION 1200 Family is a next generation software defined enterprise branch device integrated with 4G cellular network access, via the Sierra Wireless EM7411 Module. There are 6 LAN ports, 4 of which support POE up to Class 6 with a total shared consumption between the 4 POE ports of 90W. There are two 1GE SFP ports for fiber support, 2 WAN ports and 2 WAN bypass ports. The unit supports 2 redundant 150W power supply for POE and system operation.

See more
Overview
Device type
Router
Network technology
LTE Only
LTE category support
Cat 7
Hardware
Antenna

—

Battery

NA

Display resolution

NA

Ethernet ports

—

Dual SIM type

SIM1 - Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK4FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

SIM2 - Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK4FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

—

Voltage supply

100/230VAC/12VDC

Other features
Accelerometer
—
Z-Wave
—
Audio
—
Battery safety
—
Bluetooth
—
Camera
—
Dual SIM
Checked
E911
—
eUICC
—
Expansion card slots
—
GNSS
—
GPS
Checked

Keyboard
—
Magnetic card reader
—
Printer
—
RJ-11
—
Scanning technology
—
Serial
—
Smart card reader
—
Voice transmission capable
—
Wifi
—
Zigbee
—
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
—
Diagnostics
—
Security Level
—
EMS
—
MMS
—
Remote Management
Checked
SMS Capability
—
WEA (Wireless Emergency Alert)
—
Persistent Prefix IPv6
—
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
Checked
Network Slicing
—
Split Data Routing (aka Dual APN)
—
Multi-APN
—
Global Capable
—
Global IoT Orchestration Capable
—
Private Wireless Network (On Site)
—
Chassis
Dimensions

8.875x13x1.66 in.

Weight

6 lbs

Operating Temperature

0 °C to 40 °C

Storage Temperature

-20 °C to 70 °C

Relative Humidity

1--90% non-condensating


Rain & dust resistance
—
Vehicle Mounting
—
Network
NAT

—

Routing Protocols

—

Security Protocol

—

VPN Support

Yes

Numbershare

Y - Numbershare only


Fax capable
—
Firewall
Checked
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)

Band66 (1700 MHz)

Contact
Website

www.paloaltonetworks.com

Technical support
Address
3000 Tannery Way, Santa Clara, CA. 95054
Phone

(866) 898-9087

Email

support@paloaltonetworks.com

Industries

Financial Services

Industrial / Manufacturing

Retail

Utilities
