NimbeLink
NL-SW-LTE-SRC7611-4
Contact manufacturer
SalesNimbeLink
NL-SW-LTE-SRC7611-4
Key features
- Direct module access via Serial UART or USB
- Skywire family pin compatibility
- Dual SIM support with integrated solder down SIM and external 3FF SIM card slot
- GNSS support for GPS, Glonass, Beidou, Galileo
Product description

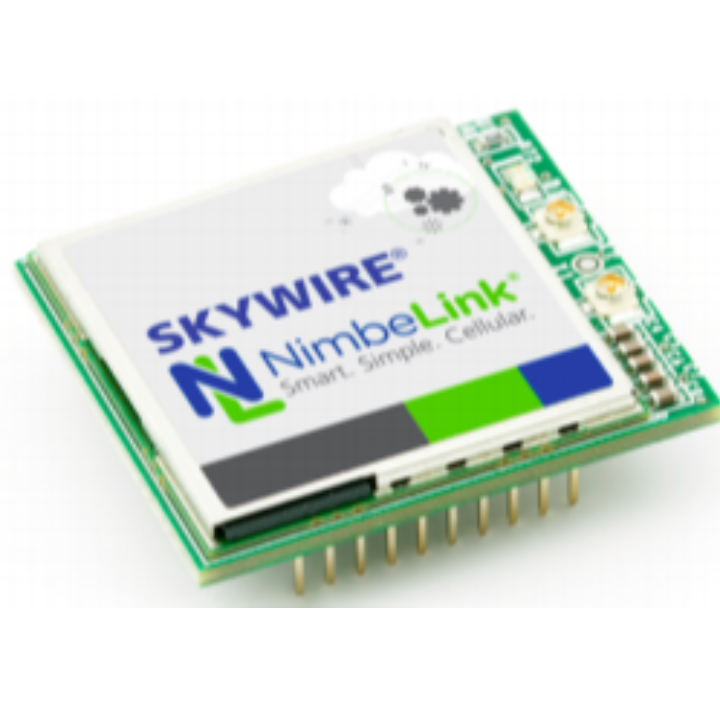

The Skywire® 4G LTE CAT 4 embedded modem is ideal for delivering fast, reliable cellular connectivity for products in North America. The modem supports GNSS, dual SIMs, and onboard network stacks.
Overview
- Device type
- Modem
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
0
Dual SIM type
SIM1 - Industrial Soldered SIM (MFF2 Embedded)
Learn More... M2M/IoT SIM SKU and Procurement Information
Compatible MFF2 SIM SKUs:
For CAT-M1 Devices:
- M2MTC-MFF2-A
- M2MTC-MFF2-D
- M2MSIM-HD-D
- M2MTC-MFF2-S
- M2MTC-MFF2-I
For Non CAT-M1(Cat 1, Cat 2, Cat 3, Cat 4,and above) Devices:
- MFF2-GT-A
- MFF2-AUTO-GT-A
- MFF2-GD-D
- MFF2-AUTO-GD-D
- M2MSIM-HDI-D
- MFF2-ST-S
- MFF2-AUTO-ST-S
- MFF2-ID-I
SIM2 - Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
—
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- Checked
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
2.9x3.3x1.05 in.
Weight
—
Operating Temperature
-40 °C to 85 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
20-90% Non Condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
