Peplink

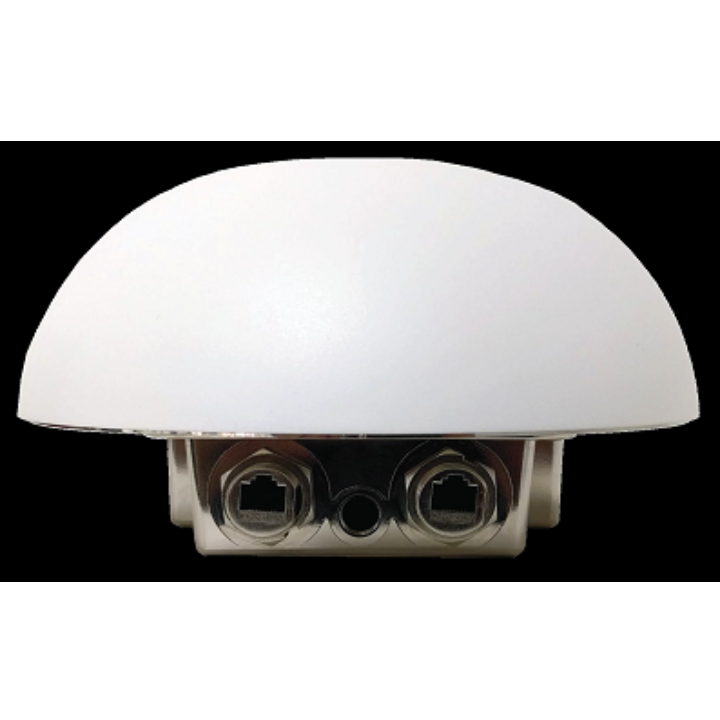

MAX HD1 Dome Pro 5G
Peplink
MAX HD1 Dome Pro 5G
Key features
- 1x Embedded 5G LTE Modem with Redundant SIM Slots
- Rugged outdoor IP67
- 1x Power over Ethernet 802.3at
Product description
HD1 Dome 5G Dome is a single cellular router provides redundant SIM in a IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal.
Overview
- Device type
- Router
- Network technology
- LTE with GSM/UMTS and 5G NR NSA
- LTE category support
- Cat 20
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
1
Dual SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
eUICC GSMA Architecture Type:
M2M (GSMA SGP.02)
USB ports
0
Voltage supply
1x 802.3at PoE+
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- Checked
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
-
LTE Licensed
LTE CBRS
5G Licensed
Chassis
Dimensions
4.33 (radius)x4.53 (hight)x0 in.
Weight
2.65 lbs
Operating Temperature
-40° °F to 149 °F
Storage Temperature
-40 °F to 149 °F
Relative Humidity
15%–95% (non-condensing)
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
One-to-one, one-to-many
Routing Protocols
Static, Dynamic, OSPF, RIPv2, BGP
Security Protocol
Yes
VPN Support
PepVPN, IPSec, L2TP
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
