ATrack Technology Inc.
AL300
Contact manufacturer
SalesAddress
8F, No. 13, Lane 120, Sec. 1, Neihu Road, Neihu Dist., Taipei City 11493, Taiwan
Phone
+886-2-27975852 ext. 286
ATrack Technology Inc.
AL300
Key features
- Fleet Management
- Vehicle Diagnostics
- IP67
- Bluetooth Enabled
- Driving Behavior Detection
Product description

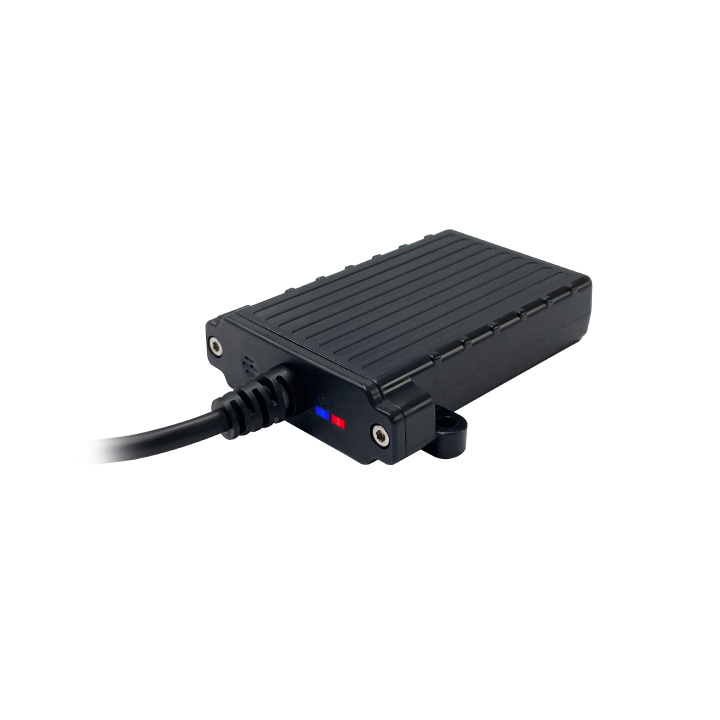

The vehicle GPS tracking unit with IP67 housing, which equips LTE Cat.M1 module and Bluetooth .
Overview
- Device type
- Vehicle Monitoring
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
Backup Battery: 3.7V 250mAh
Display resolution
No Display
Ethernet ports
0
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
Vehicle 12V / 24V system
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
RTOS
- Developer Kit
- —
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- Checked
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
8.89x7.65x2.12 in.
Weight
0.31 lbs
Operating Temperature
-4 °F to 140 °F
Storage Temperature
-4 °F to 185 °F
Relative Humidity
95%RH @ 50° C non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Technical support
Address
Phone
Industries
Transportation
