Peplink

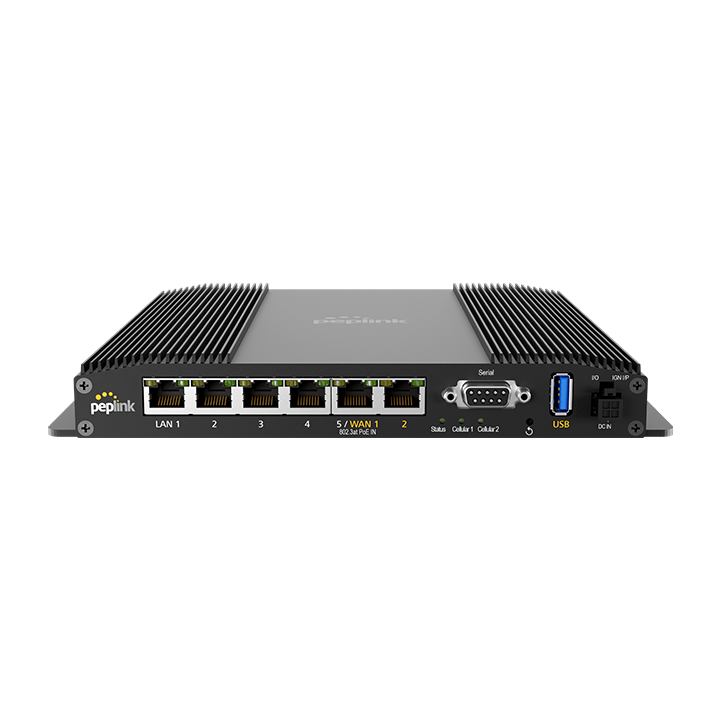

MAX BR2 Pro 5G

New
Contact manufacturer
Sales
Address

sales@peplink.com

Phone

650-450-9668

Peplink

MAX BR2 Pro 5G

Key features
  • 2x embedded cellular modem (Downlink/Uplink: 5G: 4Gbps/700Mbps; Cat-20: 2Gbps/150Mbps)
  • Simultaneous dual-band Wi-Fi 6
  • Power port with GPIO and Ignition Sensing
  • C-Band Supported
  • Device Model: MAX-BR2-PRO-5GH-T-PRM
See more
Product description

The MAX BR2 Pro is an industrial dual 5G modem router equipped with a 2.5Gb/sec WAN port, Wi-Fi 6, low-profile form factor, and GPIO with Ignition Sensing. The MAX BR2 Pro is integrated with the new generation multi-core CPU that ensures delivery of gigabit speeds.

See more
Overview
Device type
Router
Network technology
LTE with GSM/UMTS and 5G NR NSA + SA
LTE category support
Cat 20
Hardware
Antenna

Battery

NA

Display resolution

Ethernet ports

6

Dual SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

1

Voltage supply

10 - 30V

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Checked
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
Checked
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Fixed Wireless Access (FWA)
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Chassis
Dimensions

8.58x7.68x1.61 in.

Weight

2.42 lbs

Operating Temperature

-40° °F to 149 °F

Storage Temperature

-40 °F to 149 °F

Relative Humidity

15%–95% (non-condensing)


Rain & dust resistance
Vehicle Mounting
Network
NAT

One-to-one, one-to-many

Routing Protocols

Static, Dynamic, OSPF, RIPv2, BGP

Security Protocol

Yes

VPN Support

PepVPN, IPSec, L2TP

Numbershare

N - no Numbershare


Fax capable
Firewall
Checked
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)

Band48 (3500 MHz)

Band66 (1700 MHz)

5G

NSA FR1 (Sub6) n2

NSA FR1 (Sub6) n5

NSA FR1 (Sub6) n66

NSA FR1 (Sub6) n77
