Motorola Solutions Inc.
TLK 150
Contact manufacturer
SalesAddress
500 W Monroe St, Chicago, IL, 60661
Phone
+1-678-446-2404
Motorola Solutions Inc.
TLK 150
Product description

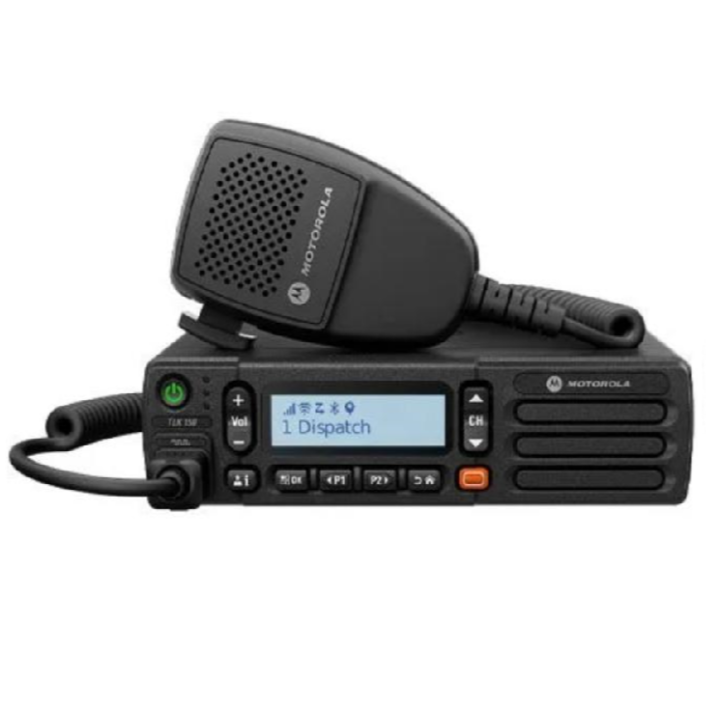

TLK 150 is an in-Vehicle Over-the-Top PTT (Data-Only) device with Integrated WAVE PTT client. Air Interface Support For: LTE (CAT-1): 1, 2, 3, 4, 5, 7, 8, 13, 17, 19, 20, 21 and 28, UMTS: 1, 2, 5, 8. Wi-Fi: 802.11 a/b/g/n, Bluetooth: BT/BLE 4.2, GNSS: Assisted, Antennas: External LTE/UMTS (Pri/Div) and GPS. Internal BT/Wi-Fi, Loud Speaker, Handheld Microphone, Simplex Audio Only, Hardware Connectors: RJ 45 Front Jack, 20-Pin Rear Connector, 3 x SMA, IP54, MIL-STD-810G, OS Embedded Linux
Overview
- Device type
- Rugged Handheld / Smartphone
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 1
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
1
SIM type
Industrial Soldered SIM (MFF2 Embedded)
Learn More... M2M/IoT SIM SKU and Procurement Information
Compatible MFF2 SIM SKUs:
For CAT-M1 Devices:
- M2MTC-MFF2-A
- M2MTC-MFF2-D
- M2MSIM-HD-D
- M2MTC-MFF2-S
- M2MTC-MFF2-I
For Non CAT-M1(Cat 1, Cat 2, Cat 3, Cat 4,and above) Devices:
- MFF2-GT-A
- MFF2-AUTO-GT-A
- MFF2-GD-D
- MFF2-AUTO-GD-D
- M2MSIM-HDI-D
- MFF2-ST-S
- MFF2-AUTO-ST-S
- MFF2-ID-I
USB ports
0
Voltage supply
12v
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
6.65x1.73x3.66 in
Weight
1.41 lbs
Operating Temperature
-4 °F to +140 °F
Storage Temperature
-40 °F to +185 °F
Relative Humidity
Per MIL-STD 810
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Healthcare
Hospitality
Industrial / Manufacturing
Utilities
