Peplink

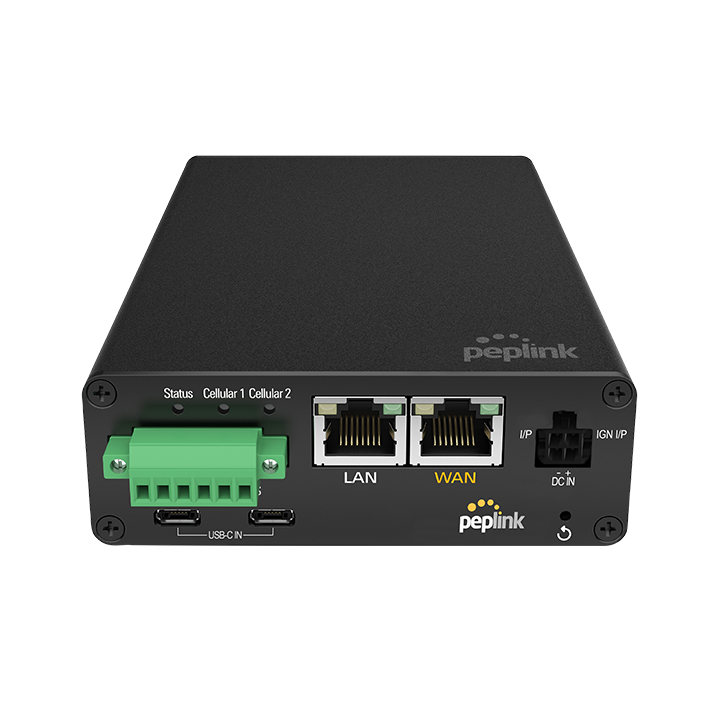

MAX Transit Pro

New
Contact manufacturer
Sales
Address

sales@peplink.com

Phone

6504509668

Peplink

MAX Transit Pro

Key features
  • 1x Power over Ethernet 802.3at
  • 2x Embedded Cat7 LTEA Modem with Redundant SIM Slots
See more
Product description

The Transit Duo fits into almost any environment. It is compact and heavily ruggedized, so it works great in office and mobile settings or even a backpack - with its USB power input. With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and up to two embedded CAT-7 cellular modems.

See more
Overview
Device type
Router
Network technology
LTE with GSM/UMTS
LTE category support
Cat 7
Hardware
Antenna

Battery

Display resolution

Ethernet ports

3

Dual SIM type

Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:

For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I







Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:

For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I







USB ports

0

Voltage supply

10-30 V

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Checked
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
Checked
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Checked
Chassis
Dimensions

4.93x5.79x1.14 in.

Weight

1.28 lbs

Operating Temperature

-40° °F to 149 °F

Storage Temperature

-40 °F to 149 °F

Relative Humidity


Rain & dust resistance
Vehicle Mounting
Network
NAT

One-to-one, one-to-many

Routing Protocols

Static, Dynamic, OSPF, RIPv2, BGP

Security Protocol

Yes

VPN Support

PepVPN, IPSec, L2TP

Numbershare

N - no Numbershare


Fax capable
Firewall
Checked
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)

Band66 (1700 MHz)

Contact
Website

Peplink

Technical support
Address
support@peplink.com
Phone

6504509668

Email

support@peplink.com

Industries

Agricultural

Construction

Education

Healthcare

Industrial / Manufacturing

Media and Entertainment

Transportation

Utilities
