Tyco Integrated Security

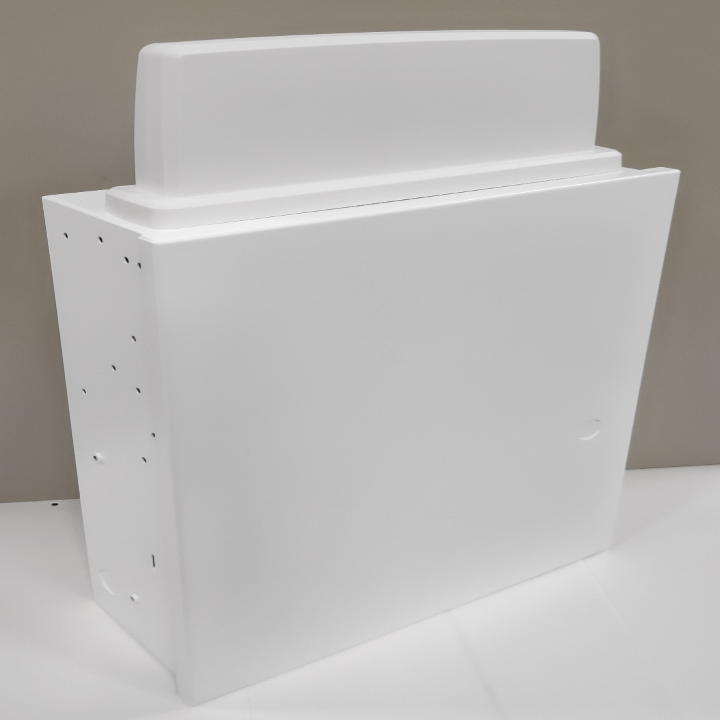

IQ Pro

Key features
  • Residential Fire and Burglary Alarm System
  • Commercial Burglary Alarm System with Encrypted Line Security
See more
Product description

IQ Pro is an Alarm System with 128 Input zones (hardwired and/or wireless) with integrated cellular alarm communication

See more
Overview
Device type
Alarm Panel
Network technology
LTE Only
LTE category support
Cat 4
Hardware
Antenna

Battery

rechargeable, sealed lead-acid rated 12V/7Ah

Display resolution

N/A

Ethernet ports

1

SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

External power adapter, rated 18Vdc/2.2A

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Checked
Camera
E911
eUICC
Expansion card slots
GNSS
GPS

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Checked
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution and Non Verizon FoTA solution (combined)

FoTA Client Type

LWM2M

Operating System

Android


Developer Kit
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Fixed Wireless Access (FWA)
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Checked
Chassis
Dimensions

60.5x30.5x12.5 in.

Weight

14.25 lbs

Operating Temperature

-10 ��C to 55 ��C

Storage Temperature

-40 ��C to +80 ��C

Relative Humidity

up to 93%RH, non condensing


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
UMTS
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)

Band66 (1700 MHz)

LTE Global / Roaming

Band7 (2600 MHz)

Band14 (700 MHz)
