Digi International Inc.

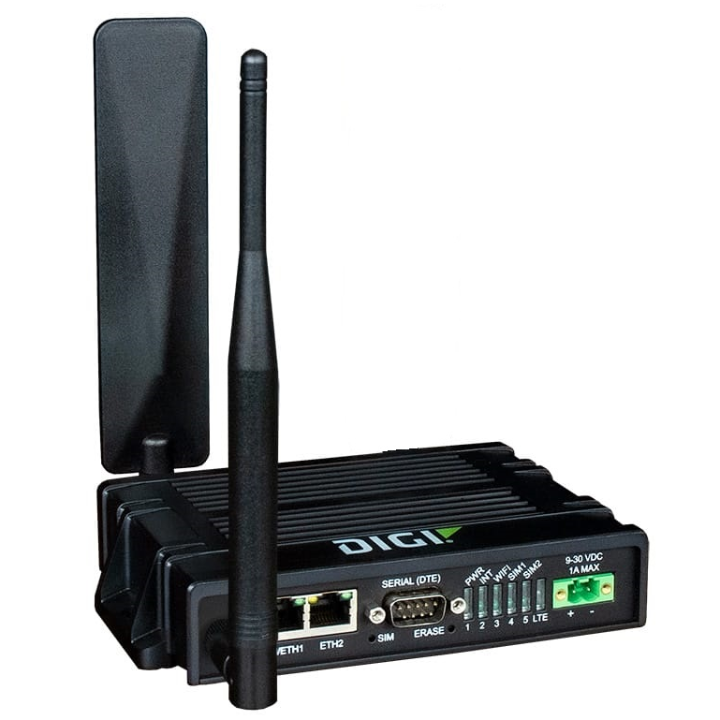

IX20-W0M1

Contact manufacturer
Sales
Address

Digi International 9350 Excelsior Blvd., Suite 700 Hopkins, MN 55343

Phone

877-912-3444 or 952-912-3444

Email
Tommy.Shannon@digi.com
Digi International Inc.

IX20-W0M1

Key features
  • 4G LTE Cat M1 - Cellular Router
  • WiFi
  • (2) RJ-45 - Ethernet
  • (1) RS-232 Serial
  • Status LEDs
See more
Product description

Digi IX20 is a full-featured cellular router that scales from general connectivity applications to industrial routing and security. Model: Digi® IX20-W0M1 Cellular - 4G LTE Cat M1 Transfer rate (max): 375 kbps down, 375 kbps up Base hardware: WiFi, (2) RJ-45 Ethernet, (1) RJ-45 RS-232 Remote management: Digi Remote Manager®

See more
Overview
Device type
Router
Network technology
LTE + Global Bands
LTE category support
Cat M1
Hardware
Antenna

—

Battery

N/A

Display resolution

N/A

Ethernet ports

2

Dual SIM type

SIM1 - Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

SIM2 - Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

9 - 30 VDC

Other features
Accelerometer
—
Z-Wave
—
Audio
—
Battery safety
—
Bluetooth
—
Camera
—
Dual SIM
Checked
E911
—
eUICC
—
Expansion card slots
—
GNSS
—
GPS
—

Keyboard
—
Magnetic card reader
—
Printer
—
RJ-11
—
Scanning technology
—
Serial
Checked
Smart card reader
—
Voice transmission capable
—
Wifi
Checked
Zigbee
—
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
—
Diagnostics
—
Security Level
None
EMS
—
MMS
—
Remote Management
Checked
SMS Capability
Checked
WEA (Wireless Emergency Alert)
—
Persistent Prefix IPv6
Checked
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
—
Split Data Routing (aka Dual APN)
—
Multi-APN
—
Global Capable
—
Private Wireless Network (On Site)
—
Chassis
Dimensions

6.38x4.21x1.38 in.

Weight

1.4 lbs

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Relative Humidity

5% to 95% non-condensing


Rain & dust resistance
—
Vehicle Mounting
—
Network
NAT

IP pass-through; NAT, NAPT with IP port forwarding

Routing Protocols

IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; Ethernet bonding; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, IPv6 RIP-NG, OSPFv3, BGP; IP failover: VRRP; automatic failover; Digi SureLink®

Security Protocol

IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support

VPN Support

IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)

Numbershare

N - no Numbershare


Fax capable
—
Firewall
Checked
UMTS
—
LTE

Band4 (1700 MHz)

Band13 (700 MHz)

LTE Global / Roaming

Band1 (2100MHz)

Band3 (1800MHz)

Band12 (700 MHz)

GSM

1800 MHz

1900 MHz

850 MHz

900 MHz
