ReadyNet Solutions
ReadyNet LTE520S
Contact manufacturer
SalesAddress
PO Box 70960, West Valley City, UT 84170
Phone
8019845130
You will be redirected for purchasing information
Our development kits are currently available through third-party sites. Please choose a vendor below to be redirected for more product and purchasing information.
Vendor(s)ReadyNet Solutions
ReadyNet LTE520S
Product description

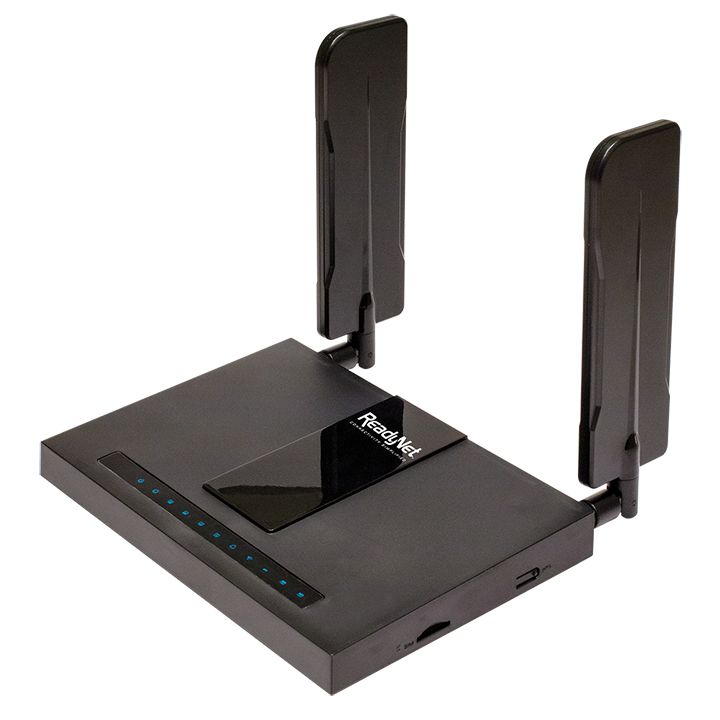

The LTE520S is a remotely managed CAT4 LTE ATA & WiFi router with one WAN port and four LAN ports to be used as a failover/primary LTE router. Use for POTS replacement, SMB's, SDWAN, IoT or where traditional internet is not available.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
5
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
eUICC GSMA Architecture Type:
M2M (GSMA SGP.02)
USB ports
1
Voltage supply
12V 1A
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- Checked
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- Checked
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- Checked
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- Checked
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- Checked
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- —
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
7.5x7.5x5.8 in.
Weight
14 oz
Operating Temperature
14 °F to 130 °F
Storage Temperature
-25 °F to 150 °F
Relative Humidity
10-90%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
NAT/ALG/DMZ/UPnP/virtual server
Routing Protocols
Static Routing
Security Protocol
TLS1.2, WPA2
VPN Support
OPEN VPN
Numbershare
N - no Numbershare
- Fax capable
- Checked
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band14 (700 MHz)
