Hewlett Packard Enterprise Company

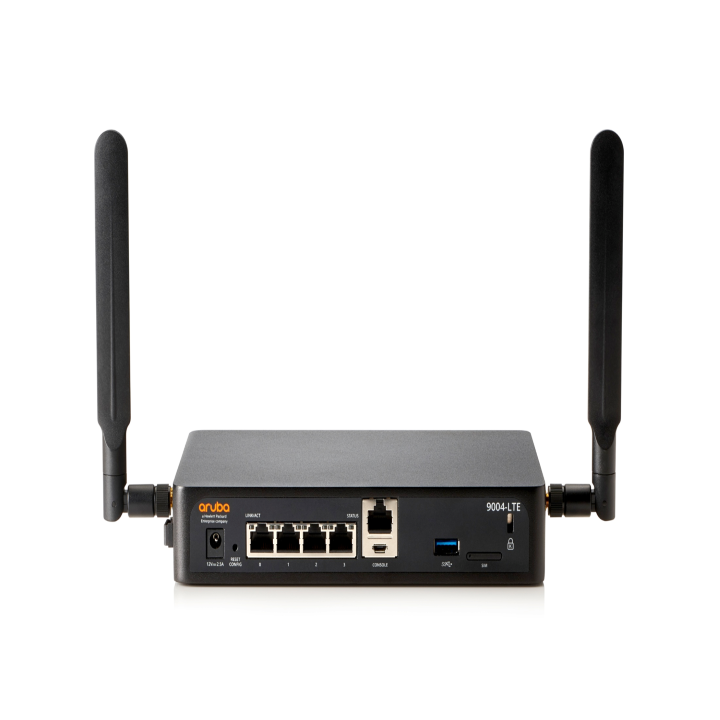

9004 LTE
Product description
Aruba 9000 Series Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and
small campus networks, the 9000 Series Gateways serve a key role within Aruba’s SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises .
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 12
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
2
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
4
Voltage supply
12v DC, 2.5A AC-to-DC power adapter
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- Checked
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
6.03x7.815x1.5 in
Weight
lbs
Operating Temperature
0 °C to 70 °C
Storage Temperature
-40 °C to 70 °C
Relative Humidity
10 to 90%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes, NAT feature is used
Routing Protocols
BGP and OSPF protocols are supported but not mandatory
Security Protocol
IPSEC tunnels are used to connect to the VPN concentrator
VPN Support
LTE is used to build a VPN tunnel into the headend/VPN concentrator
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band7 (2600 MHz)
